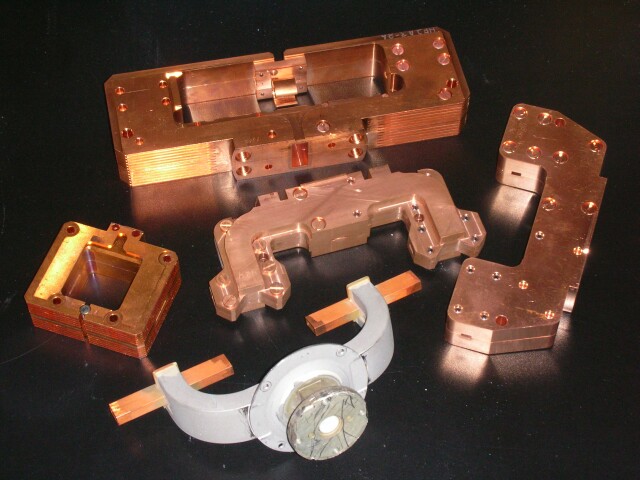

More eye candy for the cesium nuts -- the center of a cesium beam tube is the large copper Ramsey microwave cavity. Each generation of cesium standard uses a different design. The 5 specimens seen here came from Corby Dawson, who's probably hacked open more Cs tubes than all of us put together.

http://www.leapsecond.com/pages/cspeak/cesium-tube-ramsey-cavity-collection.jpg

----

So, Skip, if you have the time, break open another dead tube and keep removing layers until you expose the copper cavity itself.

----

The first commercial cesium standard was the Atomichron, made by the National Company in the late 50's. It's 10x larger than a 5061A. Some photos here, including visible parts of the monster beam tube:

http://www.leapsecond.com/museum/nc2001/
http://www.ieee-uffc.org/main/history-atomichron.asp

/tvb
