[time-nuts] Thunderbolt spurs on 10MHz output at 100Hz and 200Hz from signal.

Dan Rae danrae at verizon.net
Sun Sep 18 09:23:32 EDT 2016


On 9/18/2016 5:42 AM, David C. Partridge wrote:
> I've just redone the measurement without the external attenuator and with 10dB attenuation set internally to the analyser.
>
> The results are attached.
>
I suspect that you are measuring the analyser phase noise, but it's
rather early in the morning...

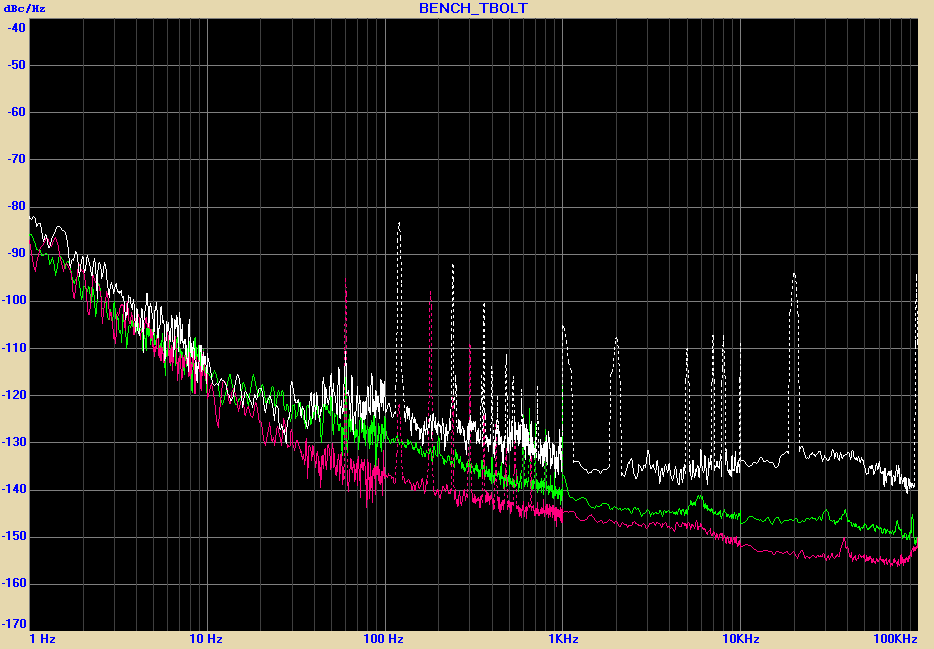

I attach, if I can get it to work, a plot of three different Tbolts on
my 3048A system.

Dan
-------------- next part --------------
A non-text attachment was scrubbed...
Name: 3TBOLTS.png
Type: image/png
Size: 79801 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20160918/3176ae9a/attachment-0001.png>
