[time-nuts] TICC resolution...

Tom Van Baak tvb at LeapSecond.com
Tue Apr 4 18:03:54 EDT 2017


Hi Wojciech,

Thanks for sharing your TICC plot. Yes, the periodic peaks show the ~55 ps quantization, which is the limiting factor of the TICC's single-shot resolution. The TICC is based on the TDC7200 Time-to-Digital Converter (TDC) chip, which uses a digital ring oscillator, which a mobius strip-like closed loop of an odd number of gates. So this quantization is expected and readily measurable with any pair of stable sources.

But I'm not sure why your plot is so ragged. Either you have too few samples, or one of your sources is unstable, or maybe the 1PPS is itself quantized, or perhaps some low order digits from the TICC are truncated before you made your plot.

If you use cleaner sources and longer runs you can get textbook-pretty results.

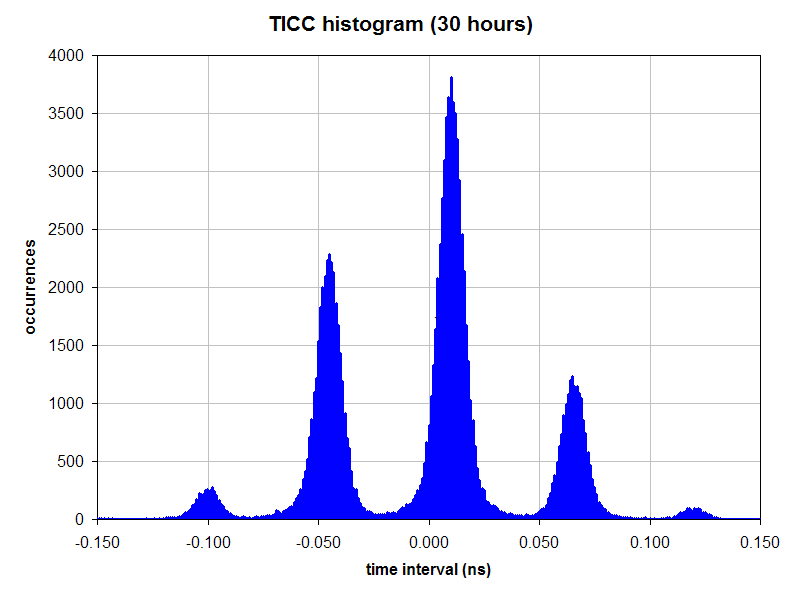

The attached plot is the result of a 30 hour run on a TICC (beta, Nov 2016):
http://leapsecond.com/pages/ticc/ticc-log5342-hist-1.gif

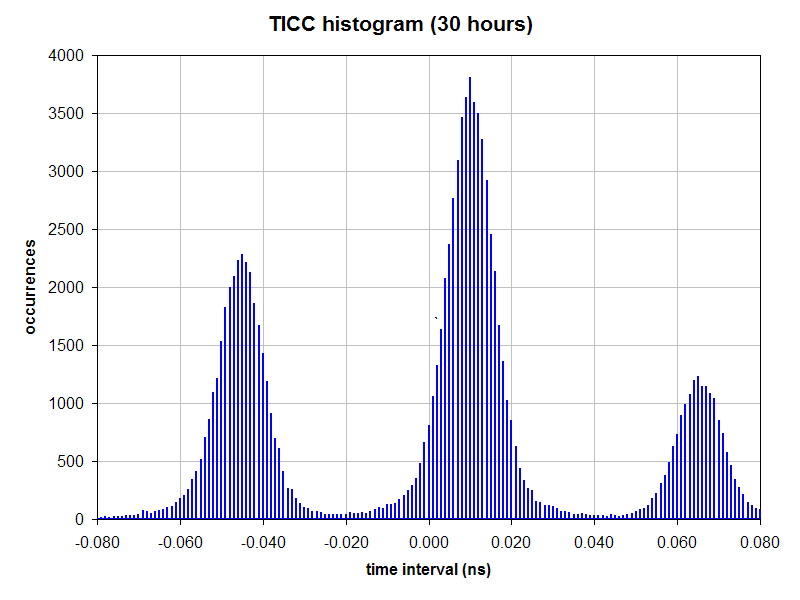

Also attached is what happens if you zoom in a bit:
http://leapsecond.com/pages/ticc/ticc-log5342-hist-3.gif

In that second plot both the 1 ps granularity of the TICC ascii output and the ~55 ps quantization of the TDC7200 chip are visible.

A TICC tends to have slightly better resolution than a hp 53132A but the "character" of their resolution is quite different: the TICC has strong quantization peaks and the 53132 is more Gaussian; the TICC outputs with 1 ps resolution (overly optimistic) and the hp rounds to 0.1 ns (probably conservative). If you try to push the envelope with better-than-spec performance out of a TICC or try to automate channel-channel-reference calibration, these details start to matter.

/tvb


----- Original Message -----
From: "Wojciech Owczarek" <wojciech at owczarek.co.uk>
To: "Discussion of precise time and frequency measurement" <time-nuts at febo.com>
Sent: Tuesday, April 04, 2017 9:20 AM
Subject: [time-nuts] TICC resolution...


> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ticc-log5342-hist-1.gif
Type: image/gif
Size: 13341 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170404/c9852075/attachment.gif>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ticc-log5342-hist-3.gif
Type: image/gif
Size: 16693 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170404/c9852075/attachment-0001.gif>
