[time-nuts] Special connector for Symmetricom X72 rubidium standard

Mark Sims holrum at hotmail.com
Thu Aug 17 22:17:19 EDT 2017

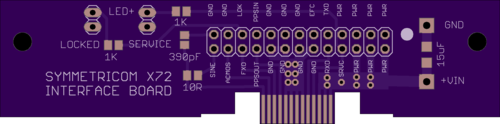

Image of the first cut of the X72 interface board attached...

This board can be used stand-alone or connected to another soon-to-be board with RS-232, 4xBNC, and 2.1mm power connectors.  Hopefully the second board will also be able to connect to a SA22.c
-------------- next part --------------
A non-text attachment was scrubbed...
Name: x72if.png
Type: image/png
Size: 45854 bytes
Desc: x72if.png
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170818/6b6d1dff/attachment-0001.png>
