Greetings,

I've been tuning up a new Trimble/Nortel NTGS50AA GPSDO and discovered
an interesting phenomenon:

Barometric pressure has a larger effect on the device than day-to-day
temperature variations.

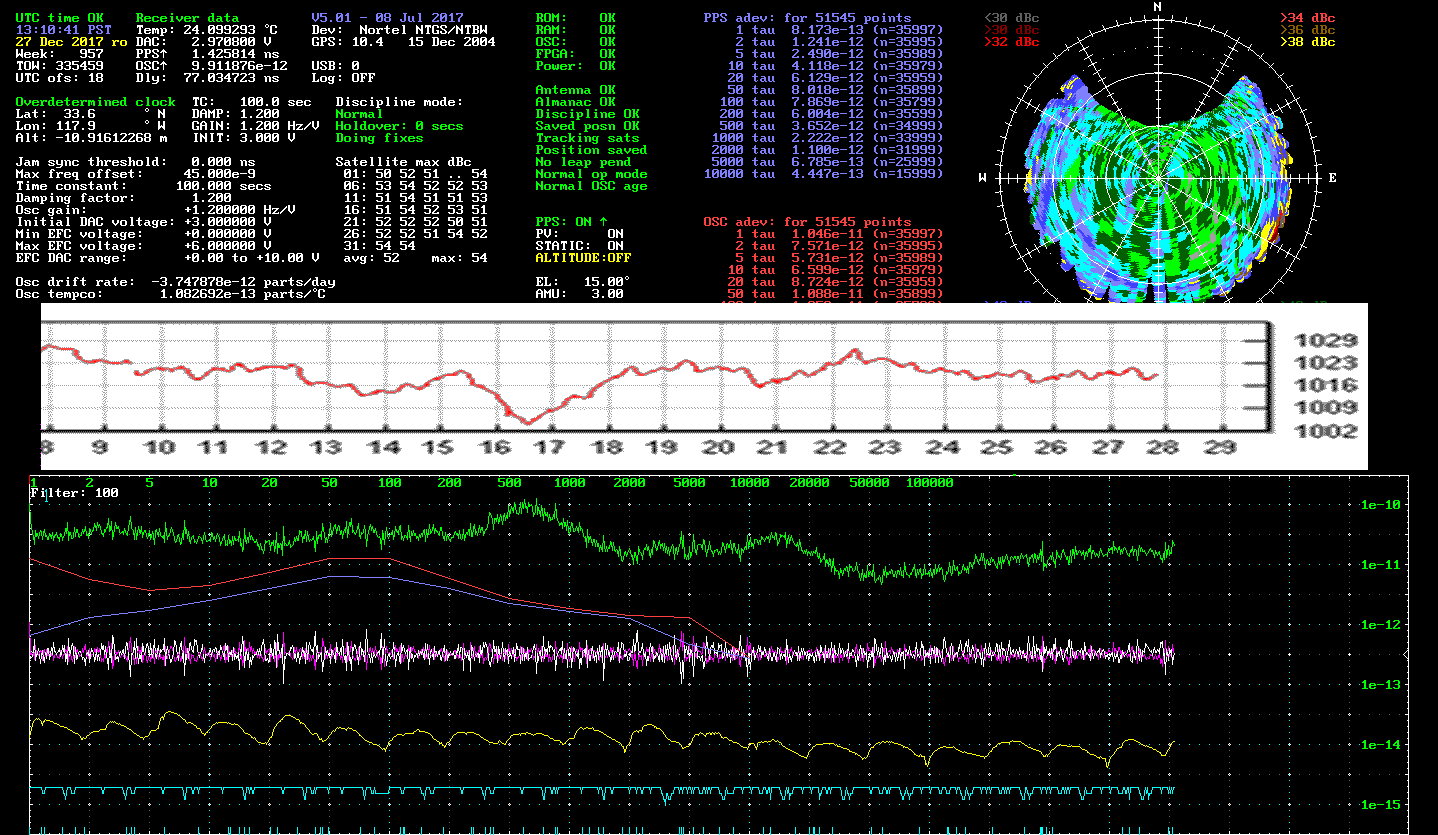

In the attached plot, DAC scaling is 500 uV and TEMP scaling is 5000
milli-degC per division. A plot of local barometric pressure, stretched
to match the time frame, was photoshopped over the Lady Heather display.
The OXCO is marked 34310-T2.

A Trimble/Nortel NTBW50AA (with oscillator "O") running nearby doesn't
show any significant sensitivity to temperature or pressure.

Regards,
Peter
