On 02/12/2017 01:08 AM, Scott Stobbe wrote:
> I was inspired recently coming across a Lampkin 105 frequency meter, as to
> how  frequency measurement was done before counters.
> Certainly zero-beating a dial calibrated oscillator, would be one approach.
> Is there a standout methodology or instrument predating counters?

Hi Scott.  That Lampkin 105 is a sophisticated design.  I did
some research that you might be interested:

For the 2015 November ARRL Frequency Measuring Test, I fired up
my old Lampkin frequency meter.  For their 100th Anniversary,
QST was encouraging the use of “vintage” equipment for the FMT,
and the Lampkin was designed in the 1930s.

I (AA8K) did surprisingly well, coming within 322 Hertz on 40
meters, 202 Hertz on 80 meters, and 18 Hertz on 160 meters.

The Lampkin 105-B was designed by Guy Forest Lampkin BSEE, who
got his first ham license in 1924.  In 1933 he was selling the
model 102, that was checked with the Federal Radio Commission
and commercial laboratories to be within 3 to 15 cycles at 1,712
kc.  He was also selling a “foundation unit” of the Precision
Micrometer, Band Spread condenser, Special Isolantite coil form,
Temperature compensator, Adjustable pad condenser, and complete
circuit details for $14.50.  Lampkin Laboratories moved from 146
West McMillian Street, Cincinnati, Ohio to 8400 Ninth Avenue
N.W., Bradenton, Florida 33506 in 1935.  It was incorporated in
1942.  Precise Power Corporation had acquired Lampkin
Laboratories in 1971/Oct.  At that time Lampkin Labs had 17
employees and wasn't advertising their 107B Digital Frequency
Meter because they were selling as fast as they could make them.
  The last known address was 12297 US Highway 41 North,
Palmetto, Florida 34221.  Voluntary Dissolution 2007/April/27.

The 105-B is a fascinating design, able to measure frequency to
0.0025%.  Signals can be measured from 100 KHz to 175 MHz.   It
works similarly to the later World War II BC-221 frequency
meter.  It can receive, or transmit the internal oscillator
2330-2670 KHz.  A diode generates harmonics that can beat
against the signal to be measured.

The variable condenser has a precision-machined tubular stator
and a tapered, conical rotor.  They are made from steel and
brass and copper plated.  The parts are proportioned such that,
due to the differential thermal expansion, the temperature
coefficient of capacity is a few parts per million per degree
Celsius at all positions of the rotor.  The rotor is moved in
and out of the stator on a micrometer screw.  The large dial and
turns counter give a dial band spread of 8,000 divisions over 42
feet!  The inductor is wound on a six-ribbed form of
polystyrene.  Since the thermal expansion of polystyrene is
greater than copper, as coil temperature increases, the turns
are pulled from circular to hexagonal, and the average diameter
of the coil decreases.

Thermal design is utmost in the Lampkin MFM.  In addition to the
L/C circuit, the vacuum tubes and circuitry are mounted on the
rear, with the chassis cut-away to keep it from heating the
front where the L/C and calibration crystal are mounted.  Wires
connecting the L/C and crystal are very small diameter to reduce
the thermal path.  Even the power transformer is bolted to the
outside of the cabinet.  The 7.5 MHz calibration crystal (no
oven) is held against the front panel.  There is a glass
thermometer mounted to the front panel.  It is custom-marked
with a correction factor for that specific unit.  I left the
Lampkin turned on from October, but the temperature soon
stabilized.  The metal 6J7 tube has the Bakelite cap removed, to
eliminate changes due to moisture absorption in the Bakelite.

Striking features of the Lampkin are:  The very smooth tuning
with almost zero backlash.  Turning the dial clockwise lowers
the frequency, but that is because the micrometer screw is a
right-hand thread and moves the rotor into the stator,
increasing capacitance and lowering frequency.  Increasing
frequency moves the micrometer post outwards through the center
of the dial, like Pinocchio's nose growing.  The outboard
transformer looks clunky at first, until you realize why he did

Modifications.  I replaced the 1 ampere line fuse with a 0.5
ampere for additional protection.  (I have been wary of
unattended equipment ever since an un-fused Radio Manufacturing
Engineers receiver monitoring RTTY autostart almost burned our
house down in the 1960s.)  Measuring frequency requires table
look-ups and correction math.  Since I did not have the original
manual with calibration data, and the end-stop was nowhere near
000 on the counter dial, I decided to calibrate it myself.  At
the same time, I added ferrite inside the coil to drop the
oscillator frequency down into the 160 meter band.  Using my
OpenHPSDR, I calibrated by noting the Lampkin dial reading for

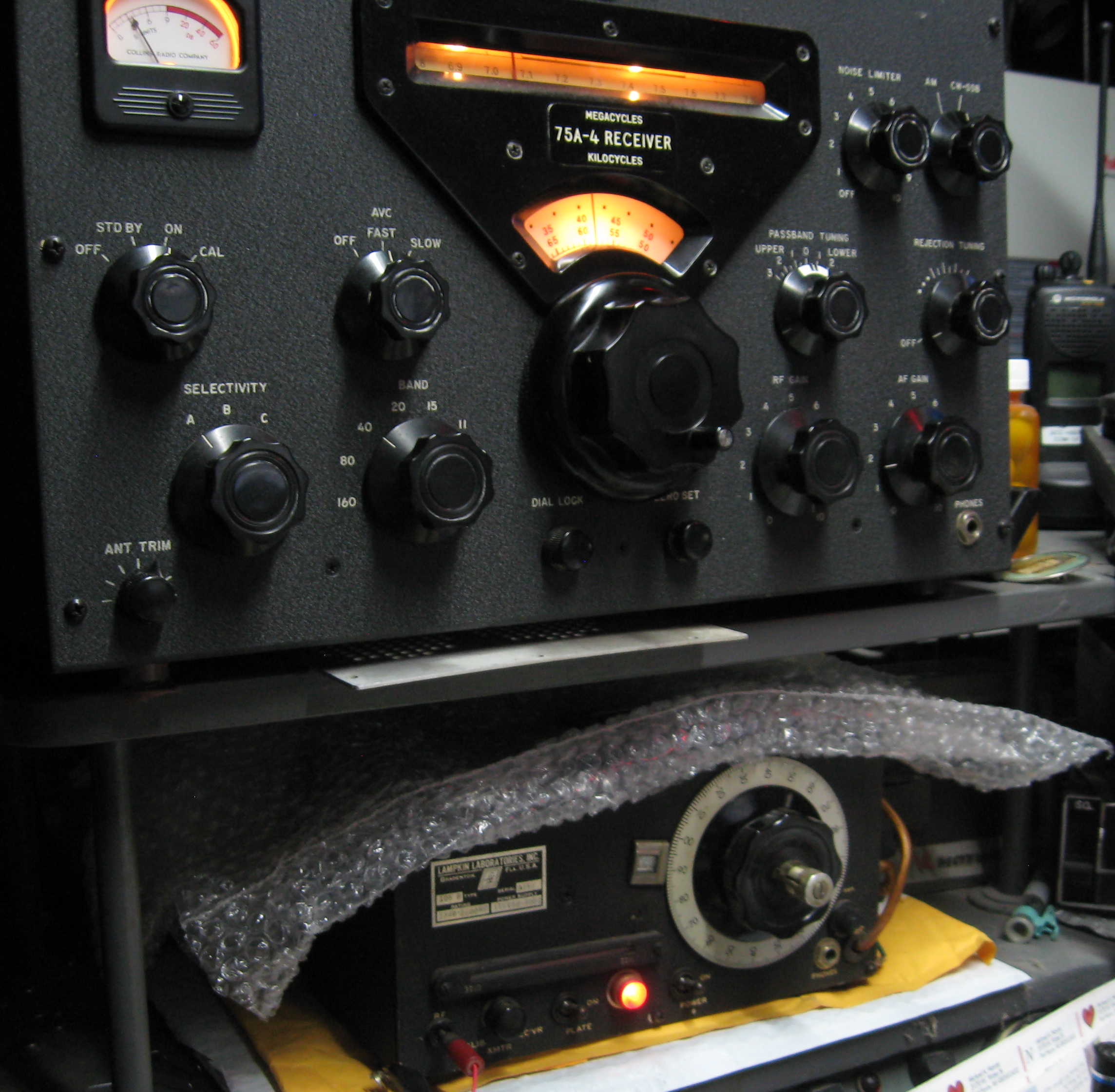

every 100 Hertz on the HPSDR.  During the FMT, I used a Collins
75A-4 receiver in AM mode and adjusted the Lampkin 105-B to
zero-beat the signal.  Using the Lampkin dial reading and
looking it up in the table, I could interpolate for the
frequency between the two calibration values.

During the test, I noticed that the Lampkin was varying because
the line voltage was changing.  The next time I will build the
recommended line voltage regulator using two 0C3 (VR-105) tubes
and a 60 Watt ballast lamp.

I uploaded my mods, photos of the inside, and a scan of the
manual to mods.dk.  I tried to ftp and email the manual to
BAMA/eDebris without success.

See attachments
