[time-nuts] TICC plots

Mark Sims holrum at hotmail.com
Sat Feb 18 21:20:44 EST 2017

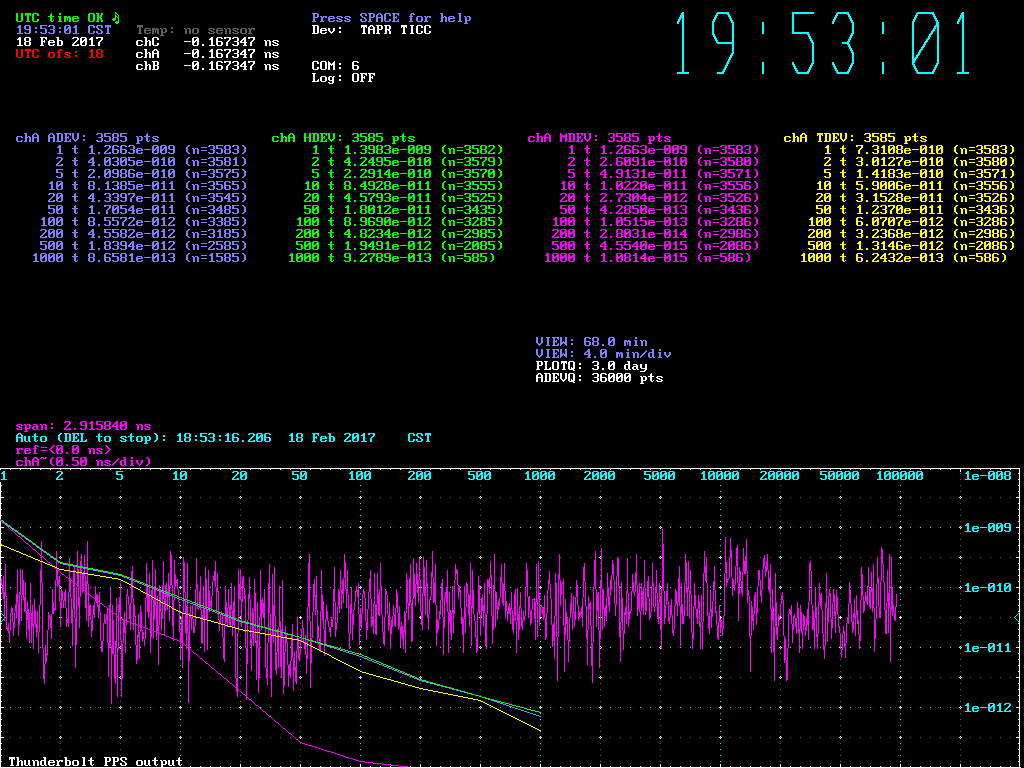

Here's an hour of Thunderbolt data...  with labels for the xDEVs.   On narrow screens only the  1-10-100-1000... divisions are labeled and not 1-2-5-10-20...  Otherwise the longer labels run together.

I also enabled the PPS plot which is basically the PPS jitter.

The Star-4 PPS seems to be around 3 times better than the Thunderbolt PPS (and that's with an indoor antenna on the Star-4).   It uses an LEA-5T + their highest spec 8663 DOCXO.  I need to get a TADD-Mini to measure the 10 MHz.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ticc3.gif
Type: image/gif
Size: 36674 bytes
Desc: ticc3.gif
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170219/5599cd7c/attachment.gif>
