[time-nuts] Thunderbolt rollover glitch

Mark Sims holrum at hotmail.com
Sat Jul 29 20:41:01 EDT 2017

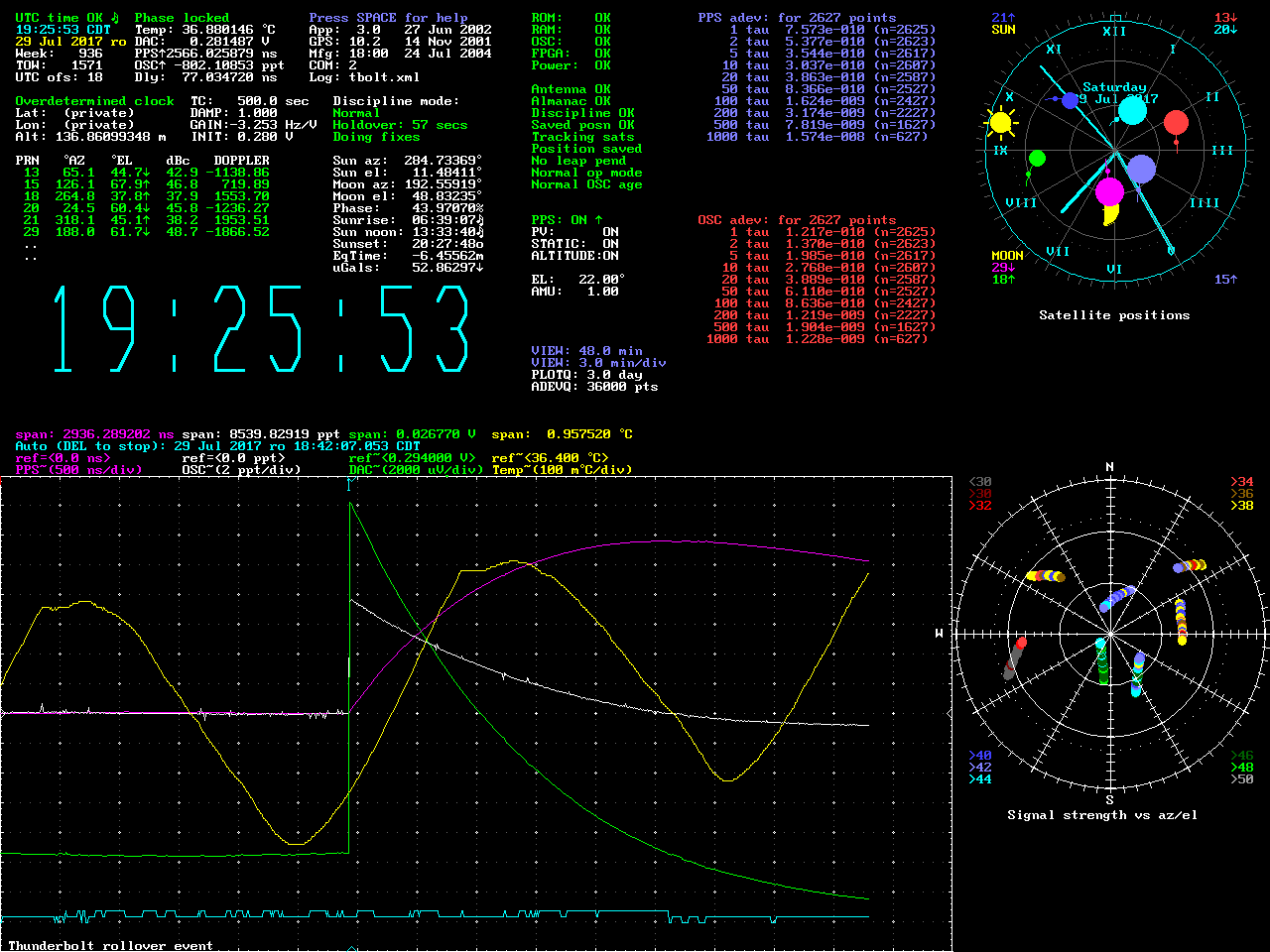

Attached is a plot of  Thunderbolt data before and after the event.  2 seconds after rollover the Thunderbolt reported it was re-initializing the loop filter and 4 seconds after the event it reported is was starting to phase lock the 1PPS.   The DAC jumped 0.023V V which is around 75 mHz of frequency change.  The 1PPS jumped around 2936 ns.

It looks like it is going to take a few fours to recover to its pre-rollover state.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: rollover.gif
Type: image/gif
Size: 50085 bytes
Desc: rollover.gif
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170730/c15ccc44/attachment.gif>
