[time-nuts] GPS Antenna on Tower.

Mark Sims holrum at hotmail.com
Tue Jun 20 12:34:14 EDT 2017

I just added the ability to calculate solid earth tides and the vertical gravity offset due to the sun and moon to Lady Heather.   The lat/lon offset is typically around +/- 60 cm per day.    Vertical offset is around  +/- 180mm.  Depending upon the day and where you are, the swings are not symmetrical around 0.0

Solid earth tides are a BIG factor in precision geodesy.   Gravity offset is a big issue for precision pendulum nuts.  If your pendulum clock cannot detect gravity offsets (very few can) it's not nutty enough.

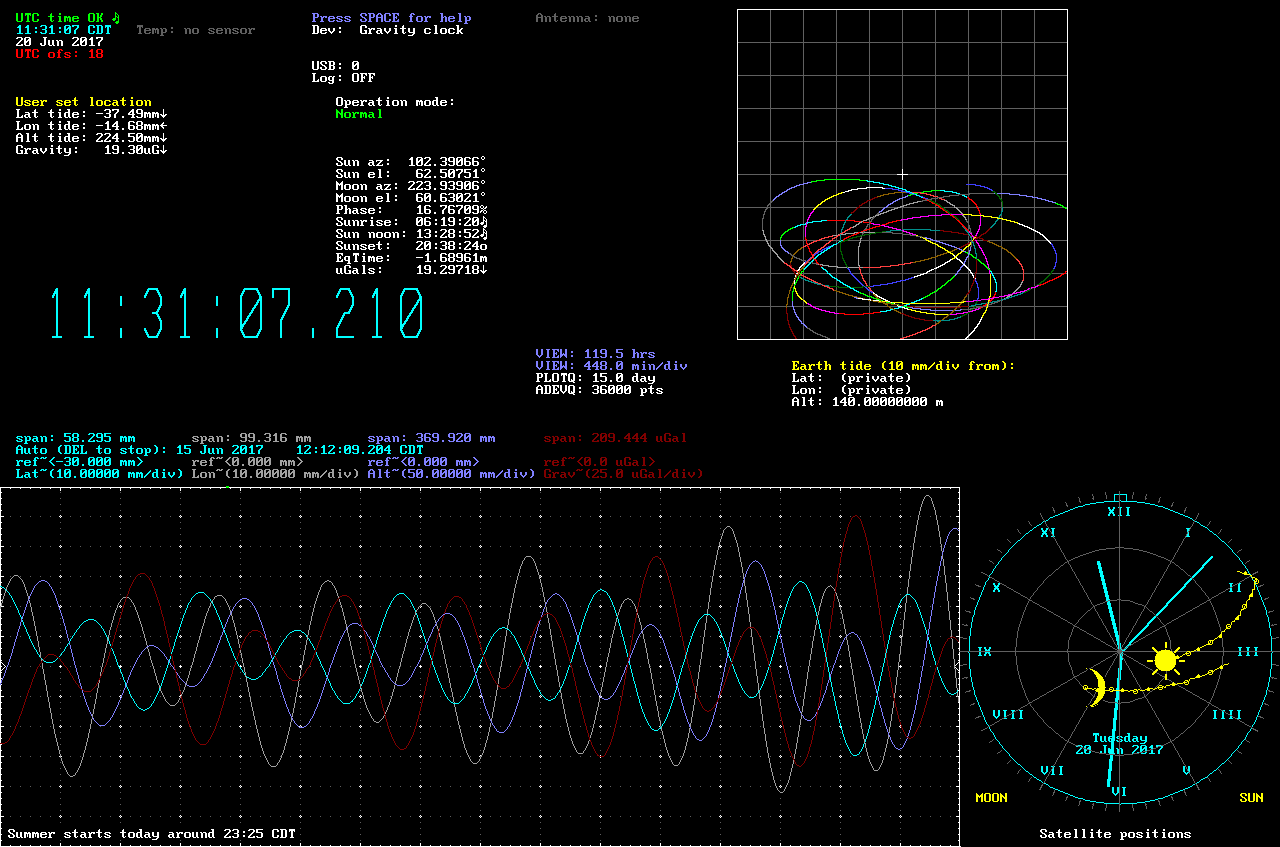

The attached plot shows around 5 days of data.


>  Since 1cm of motion is equivalent to 30ps, there's probably not
-------------- next part --------------
A non-text attachment was scrubbed...
Name: gravity.gif
Type: image/gif
Size: 45865 bytes
Desc: gravity.gif
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170620/6bb72b59/attachment-0001.gif>
