[time-nuts] phase/frequency data of real atomic clocks

Tom Van Baak tvb at LeapSecond.com
Thu Mar 2 10:02:14 EST 2017


Hi Attila,

File www.leapsecond.com/tmp/log22722.dat.gz is half a million seconds of two active H-masers. Data is phase difference, units are seconds, tau0 is 1 s.

The raw phase will look bad until you apply a quadratic fit. Stable32 reports:
 DRIFT FOR FILE: log22722.002
 Frequency Data Points 1 thru 515027 of 515027
 Drift Type: Quadratic
 a=8.537717e-08
 b=-1.802362e-12
 c=-7.356496e-20
 Slope=-1.471299e-19

With that done, it stays within 0.5 ns for the week. The ADEV plot might be a good example for you: white noise until 100 s; then the maser auto-tuning plateau until well past 1000 s; then a nice drop into the low -15's. The drift rate was really high. I'd have to check my notes; maybe this was a power-on test. I'll get you a much longer, more stable run later, but this particular run happened to be on my laptop.

Some plots attached.

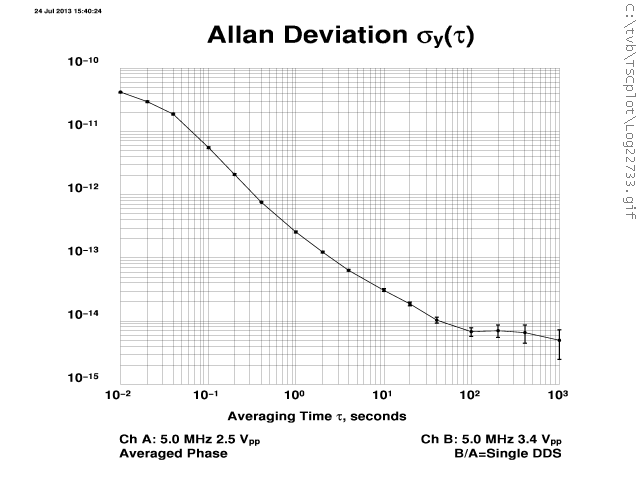

log22733v.gif -- screen shot from TSC5110 an hour into the run
log22734v.gif -- ditto

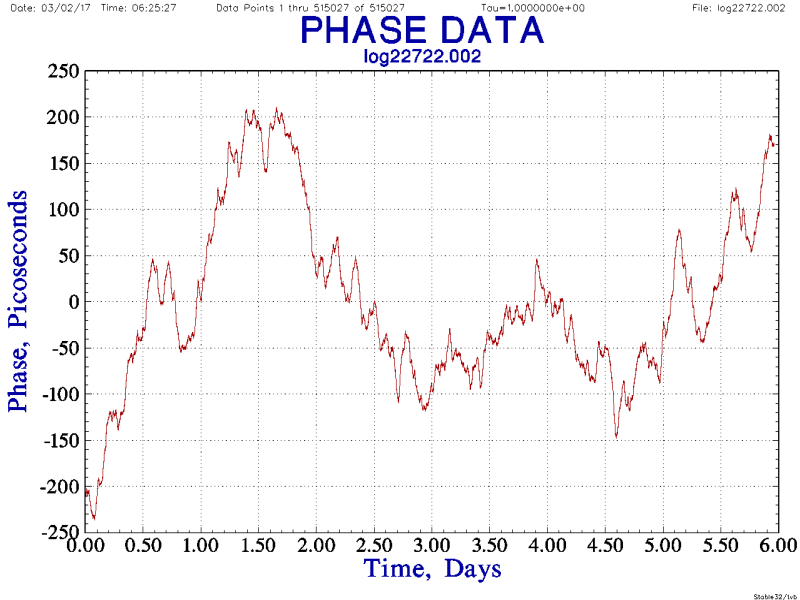

log22722-1.gif -- Phase residual plot of full data set

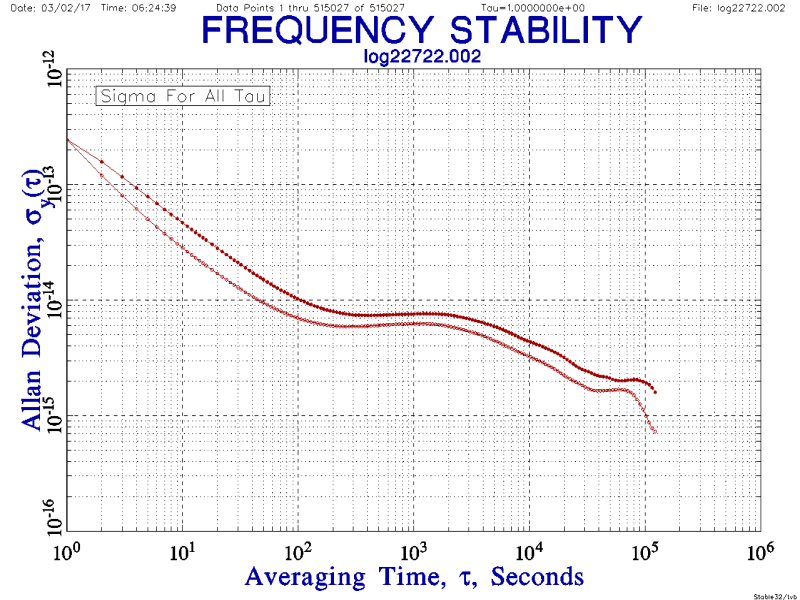

log22722-2.gif -- ADEV+MDEV of residuals.

/tvb


note to self:

cd \tvb\2013-ahm\5110\ahm5--st5

dir log227*
07/24/2013  04:00 PM           274,948 log22722-mjd56497.txt
07/25/2013  04:00 PM         2,811,260 log22722-mjd56498.txt
07/26/2013  04:00 PM         2,932,144 log22722-mjd56499.txt
07/27/2013  04:00 PM         2,937,430 log22722-mjd56500.txt
07/28/2013  04:00 PM         2,938,722 log22722-mjd56501.txt
07/29/2013  04:00 PM         2,937,226 log22722-mjd56502.txt
07/30/2013  12:36 PM         2,520,794 log22722-mjd56503.txt

cat log22722-mjd* | ht2
56497.897473773 1 0.4257858
56497.897485347 2 0.4257756
\/\/\/\/\/\/\/\/\/\/\/\/\/\/ (515027 lines total) \/\/\/\/\/\/\/\/\/\/\/\/\/\/
56503.858467512 515026 -4.3111472
56503.858479086 515027 -4.3111562

cat log22722-mjd* | mjdrate
56497.897474 ... 56503.858479 5.96 days (143.06 hours),  515027 lines,  1.000009 seconds/line,  0.999991 Hz

cat log22722-mjd* | da fld 3 /5e6 f .14 plus out \tmp\log22722.dat
