[time-nuts] TruePosition GPSDO performance

Mark Sims holrum at hotmail.com
Fri May 12 01:05:46 EDT 2017

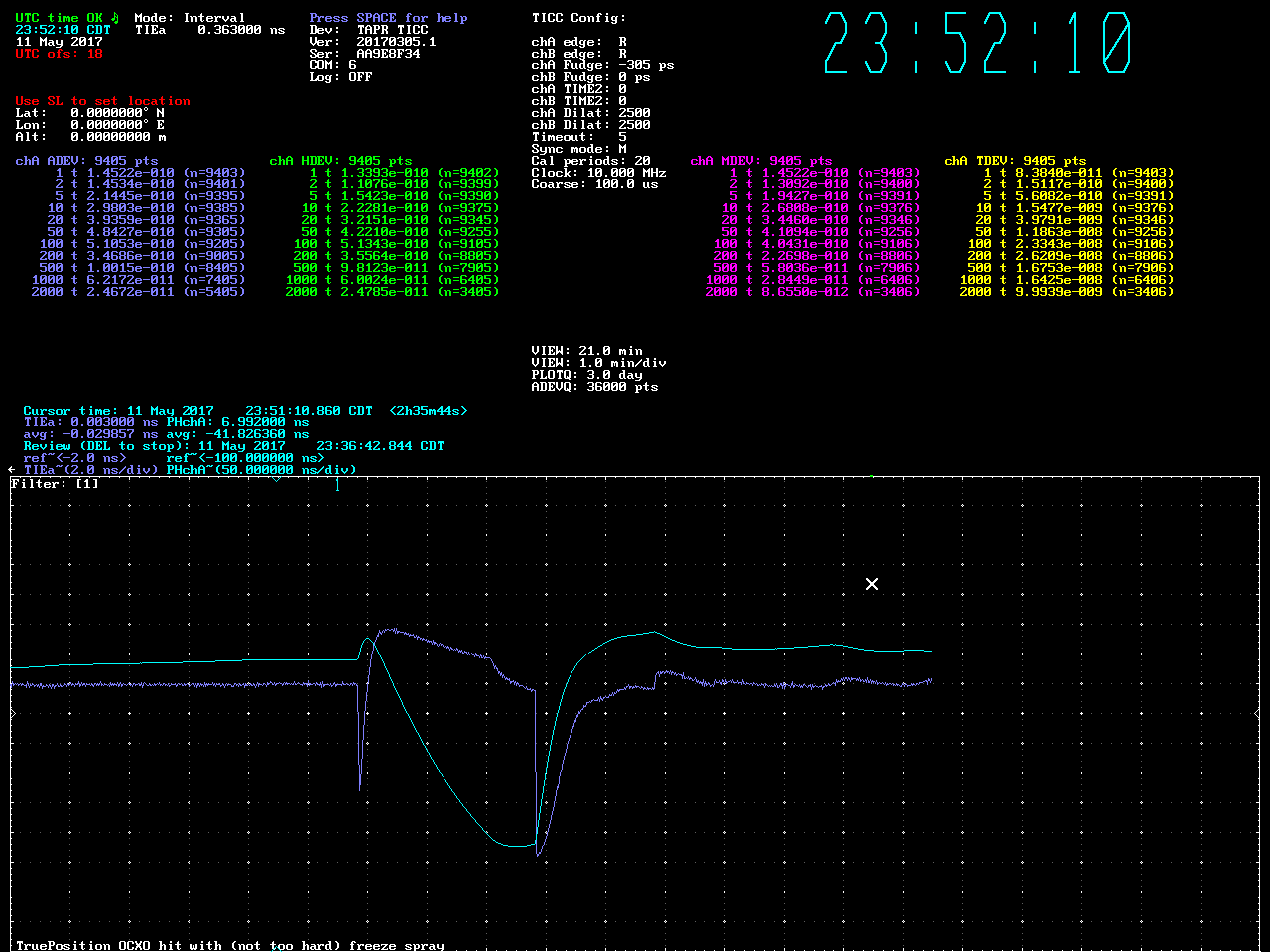

Ok,  I dusted the TruePosition OCXO with some freeze spray.   Not pretty picture attached...  it took around 6 minutes to stabilize.  I used just enough spray to lightly frost the can.  It would probably help to shield the board from drafts,  but probably not wrap it in a polar parka.

It did put the unit into holdover.   Other holdovers I've seen had a very stable temperature sensor reading.  No air conditioning on and a stable room temperature.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: freeze.gif
Type: image/gif
Size: 34867 bytes
Desc: freeze.gif
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170512/9a6beb6f/attachment.gif>
