Andy,

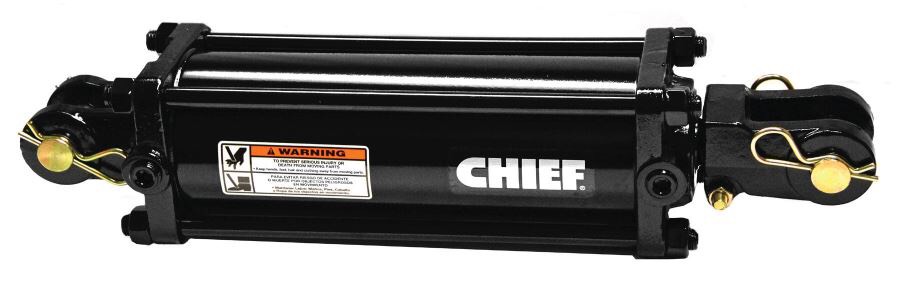

Although this is a hydraulic cylinder, this is along the lines of what you
described.




On Thu, May 18, 2017 at 19:18 Andy ZL3AG via time-nuts <time-nuts at febo.com>
wrote:

>
>
> Or go for thicker wall aluminium tube, oversized endplates and long bolts
> or threaded rods running the entire length down the outside of the tube so
> you're clamping both ends in one operation. No tapping required. Simples!
>
>
>
>
> On 19/05/2017, at 6:16 AM, Tim Shoppa wrote:
>
> > I bet you went to 0.25" wall square tubing only because you want to tap
> the
> > walls for 4-40. Alternative designs can let you use much thinner material
> > and a very different flange on the ends, but the costs will likely move
> > towards welding/brazing rather than machining.
> >
> > Tim N3QE
> >
> > On Thu, May 18, 2017 at 12:54 PM, <cdelect at juno.com> wrote:
> >
> >> Hi,
> >>
> >> I have a square aluminum tube 5" X 5" with a .25" wall it's 8 1/2" long.
> >>
> >> I need 20 holes in each end tapped for 4/40 and 1/2" deep.
> >>
> >> This is for a Rubidium project.
> >>
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>
--

Ken
WA2LBI

Sent from one of my mobile devices
