[time-nuts] timing and RTL-SDR

[jimlux]

the behavior of the inside of the 2832 downconverter isn't documented,
although there's some theorizing that it's a complex I/Q multiply,
followed by a FIR filter with 31 taps (which are published), followed by
a resampler/decimator followed by a decimate by 4.

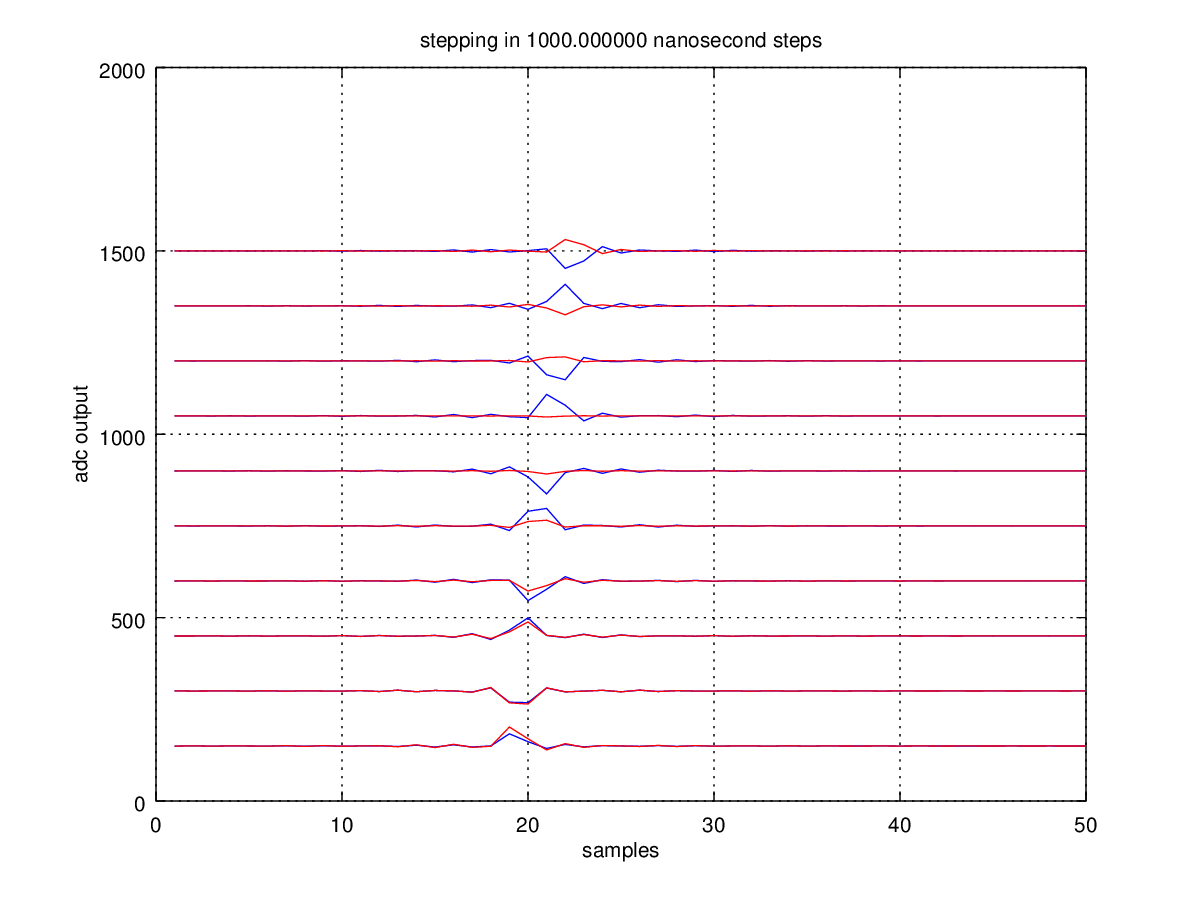

So I experimented with feeding in a step function to this and sliding it
over.  10 MHz LO, 1 MHz output frequency (so the rational resampler is
5/36).. I used Octave's resample() and decimate() and ran it floating
point, so who knows if that's what the part actually does.  But, it does
start to look like what I'm seeing.

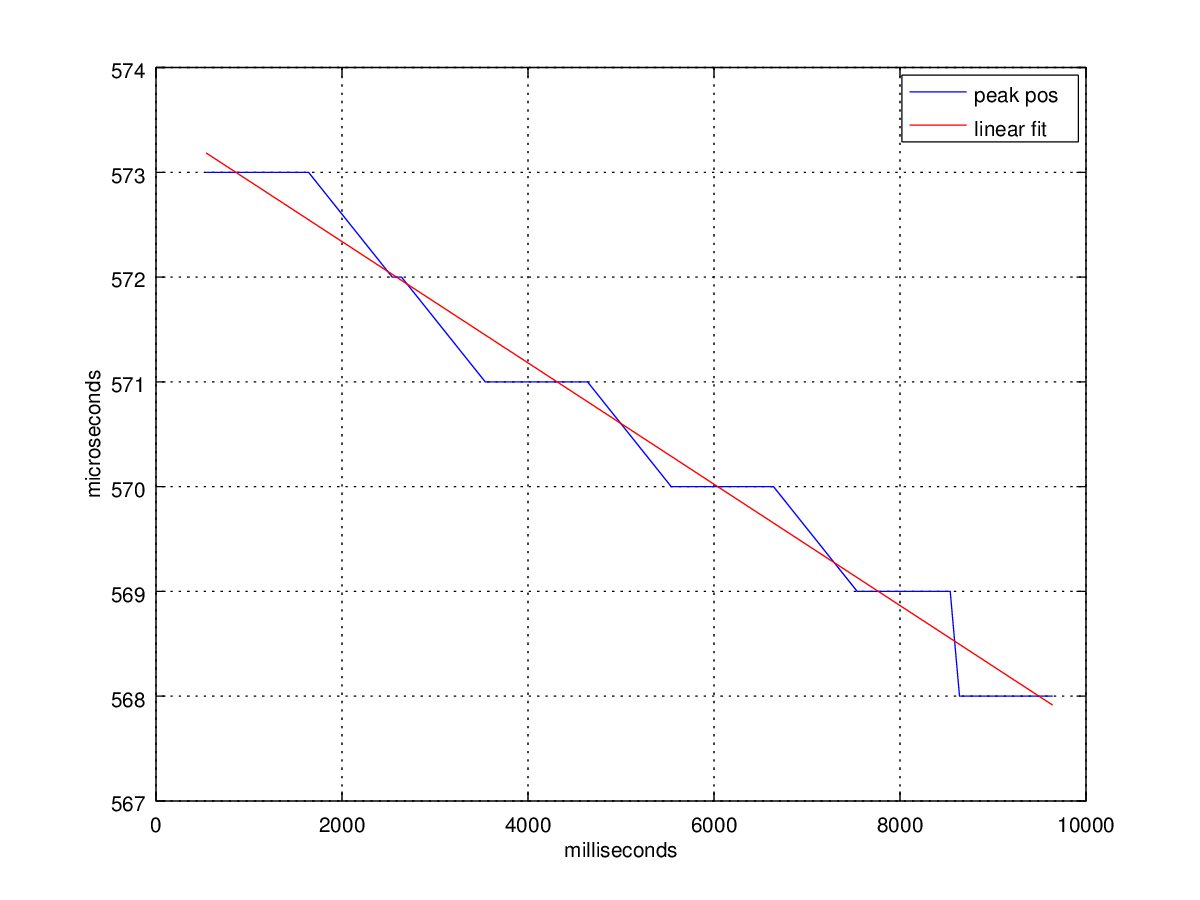

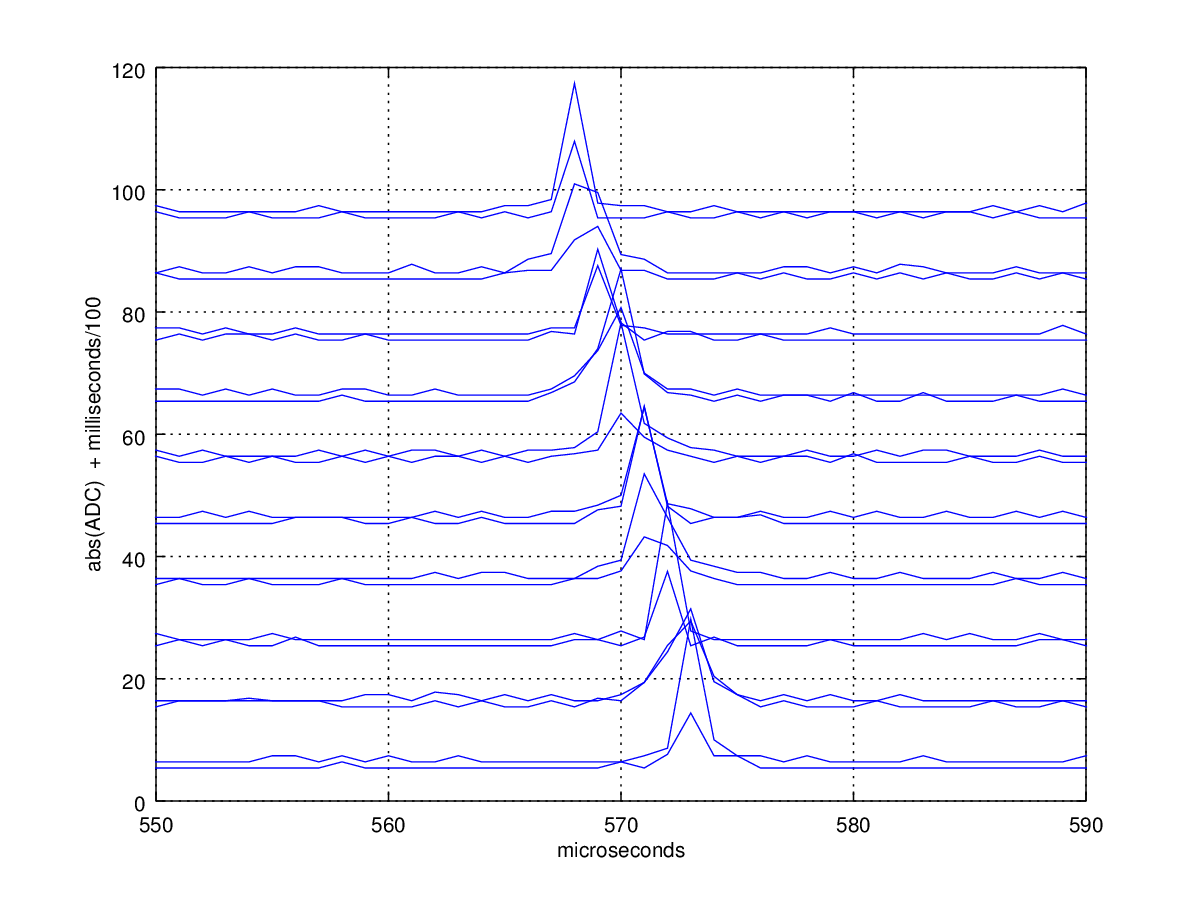

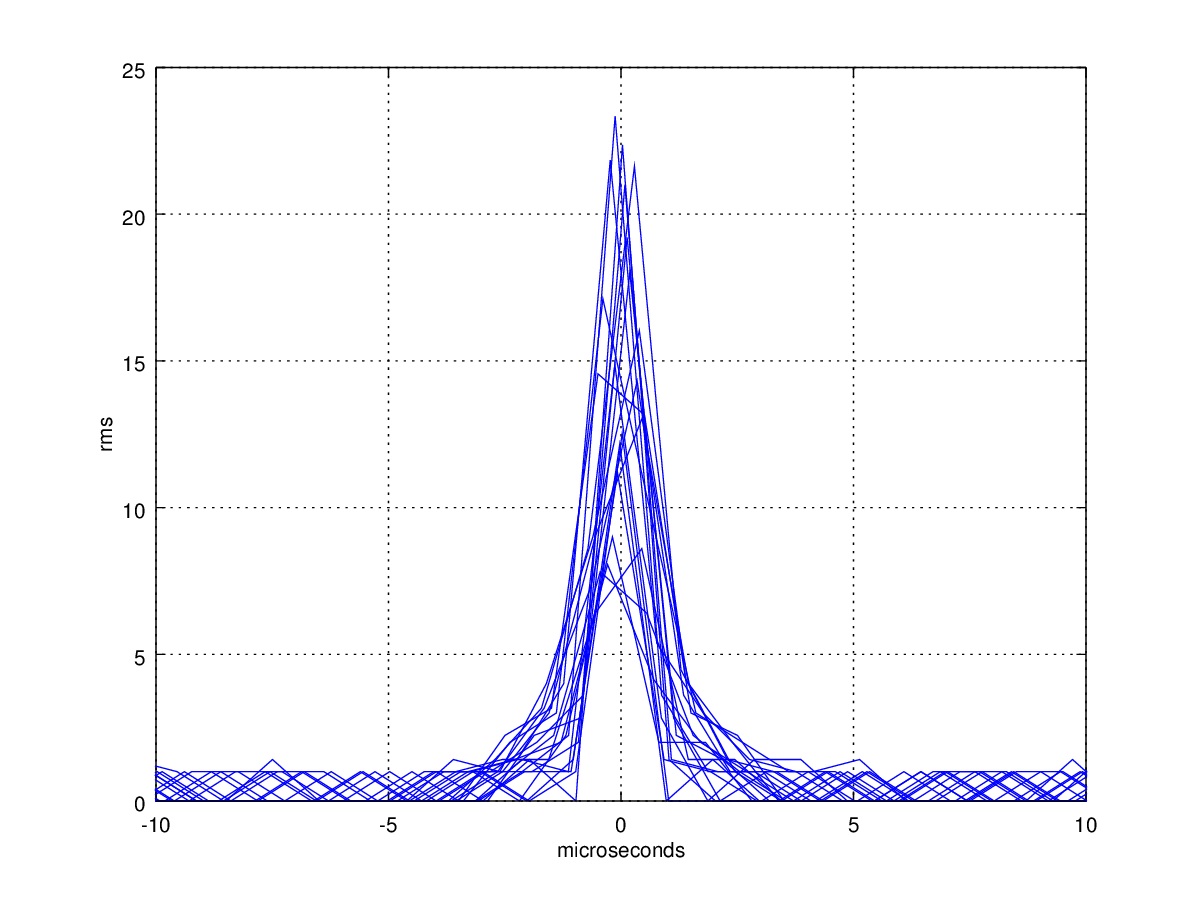

I also (based on the discussion of Jim Palfreyman's quasar) doing a find
the peaks do a linear fit and then stack.
