[time-nuts] The "NAKED" 5065A optical unit

cdelect at juno.com cdelect at juno.com
Mon Feb 19 20:08:40 EST 2018

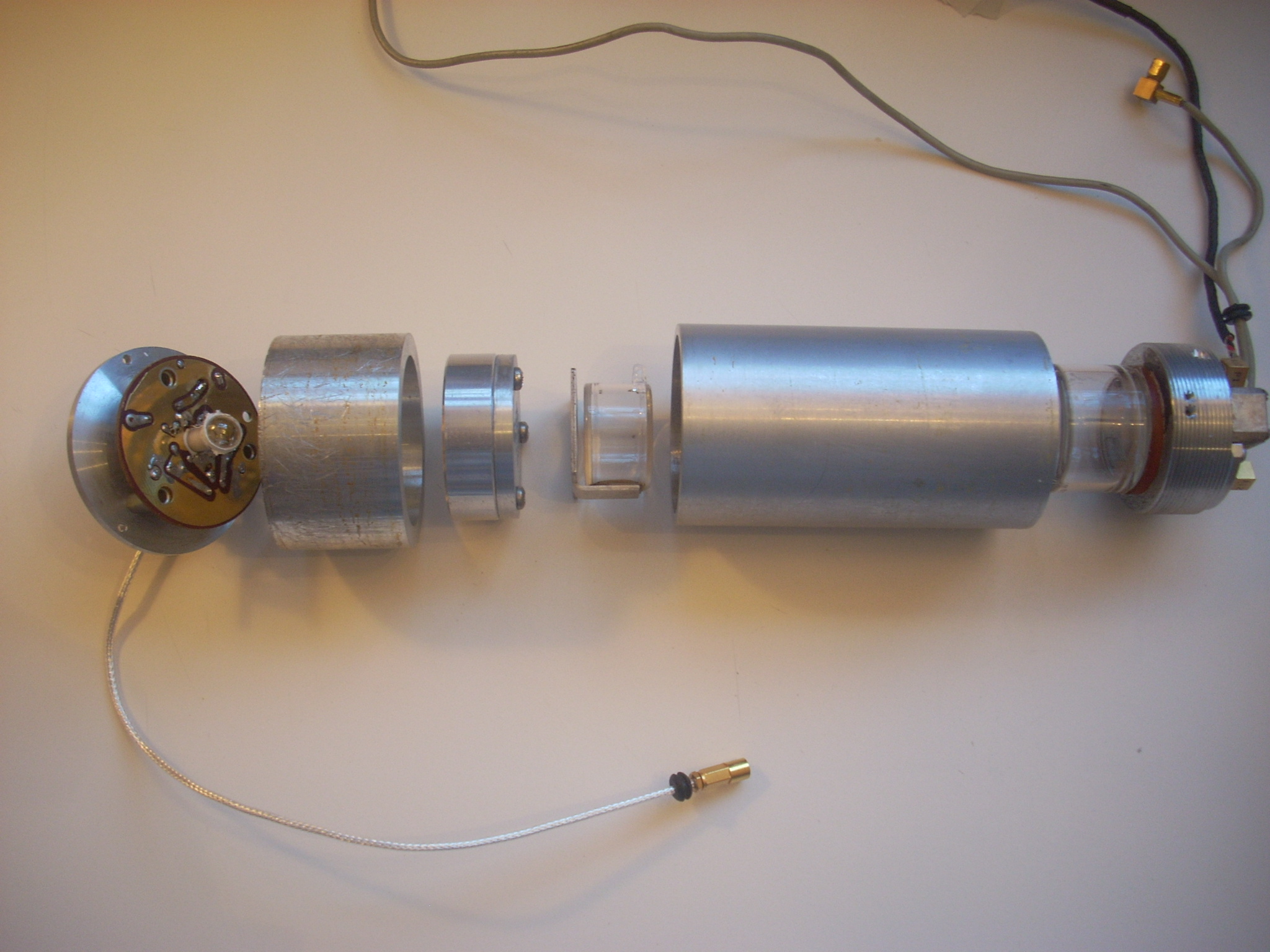

Here is a PIX of the optical unit from a 5065A totally removed from the
shield assembly.

Left to right:

Lamp assy
lamp oven cylinder
lamp reflector/convection block/diffuser
Rb85 filter cell
cell oven cylinder/cavity
Rb87 resonance cell



-------------- next part --------------
A non-text attachment was scrubbed...
Name: DSCN2848.JPG
Type: image/jpeg
Size: 823825 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180219/7cbe5bd9/attachment-0001.jpe>
