[time-nuts] Replacement A9 Boards for the HP 5065A
Ulf Kylenfall
ulf_r_k at yahoo.com
Sun Feb 25 11:38:32 EST 2018
Having upgraded my 5065A with an improved AC Amplifier BoardI went along to also upgrade the A9 Integrator. I obtaineda few OPA111's and also found a what I beleive was anacceptable quality integrator capacitor. My prototype usedstandard 78xx and 79xx voltage regulators.
When testing this board according to the service manualthe output voltage did not change between going fora mug of cofee and returning after having finished it.
I take that as an "OK".
The design did not go to well with the older type of OCXO though(Yes - I noticed Corbys warning about the resistor presenton the fp switch). So I did not install the board.
Attached is a .PDF and a .JPG
Comments invited.
Ulf Kylenfall
SM6GXV
-------------- next part --------------
A non-text attachment was scrubbed...
Name: HP5065A_A9_Integrator.pdf
Type: application/pdf
Size: 193763 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180225/3350f714/attachment-0001.pdf>
-------------- next part --------------
A non-text attachment was scrubbed...

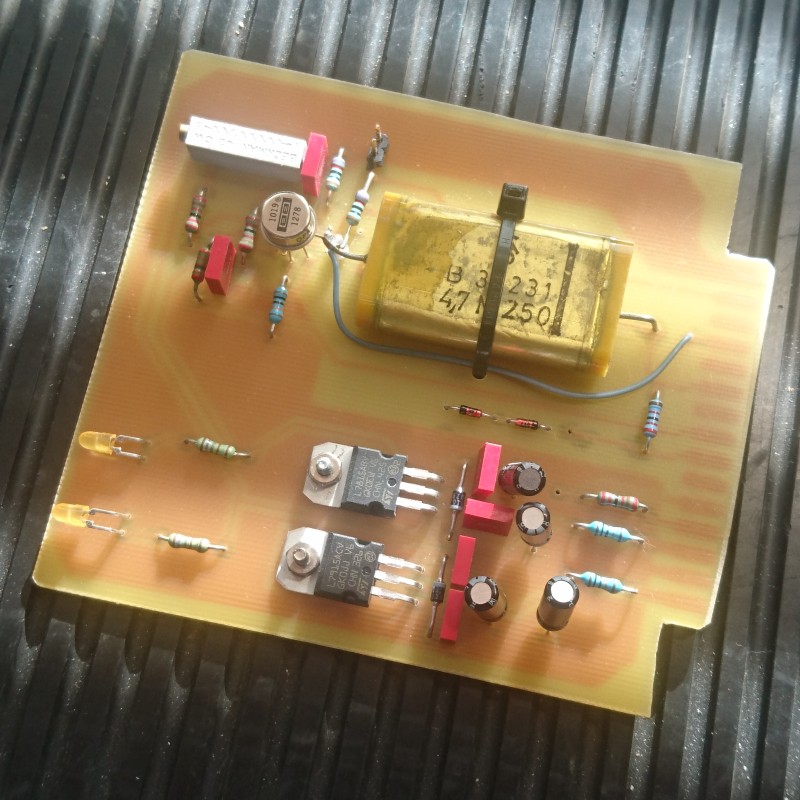

Name: A9_Integrator-800x800.JPG
Type: image/jpeg
Size: 139043 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180225/3350f714/attachment-0001.jpe>
