Hi,

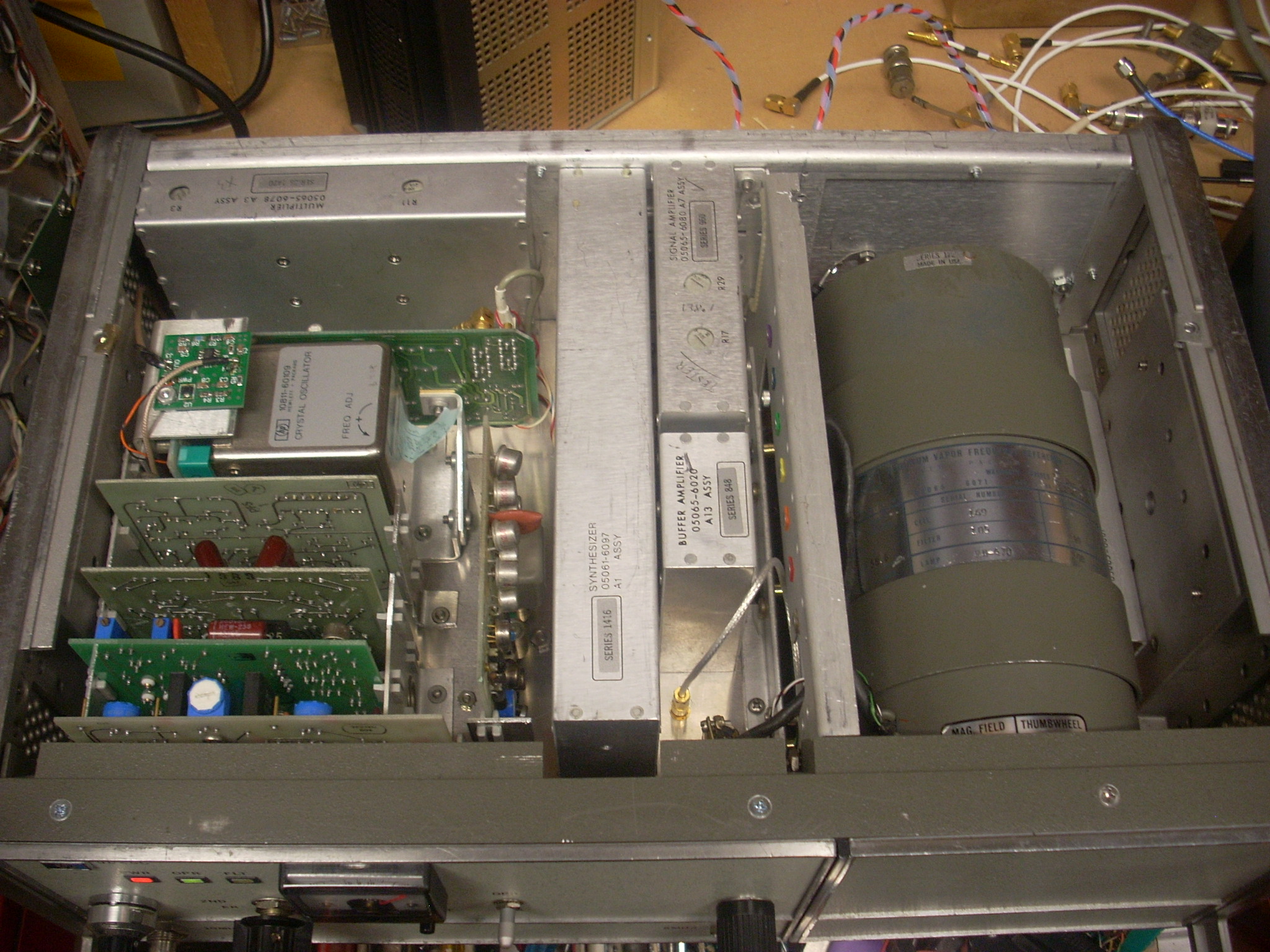

Thought I'd share some PIX of an HP5065A I made up from spare parts.

Chassis was from an HP8620C and there is no AC supply, it runs off of
external +24VDC.

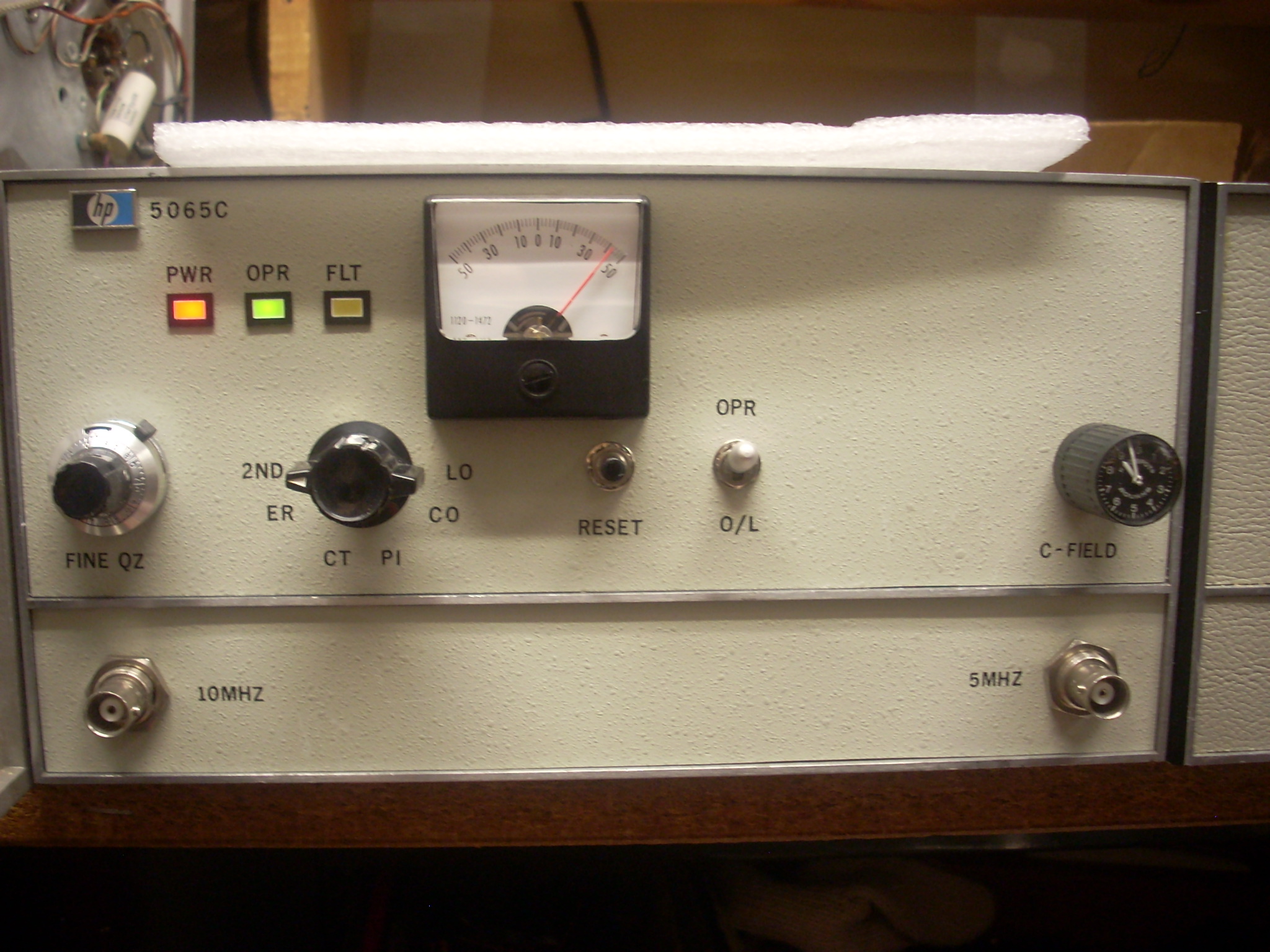

Unit has 5 and 10 Mhz outputs.

It tests well and easily exceeds the HP specs.

Cheers,

Corby
