[time-nuts] NEO-M8N vs. NEO-M8T

Mark Sims holrum at hotmail.com
Mon May 21 15:21:25 EDT 2018

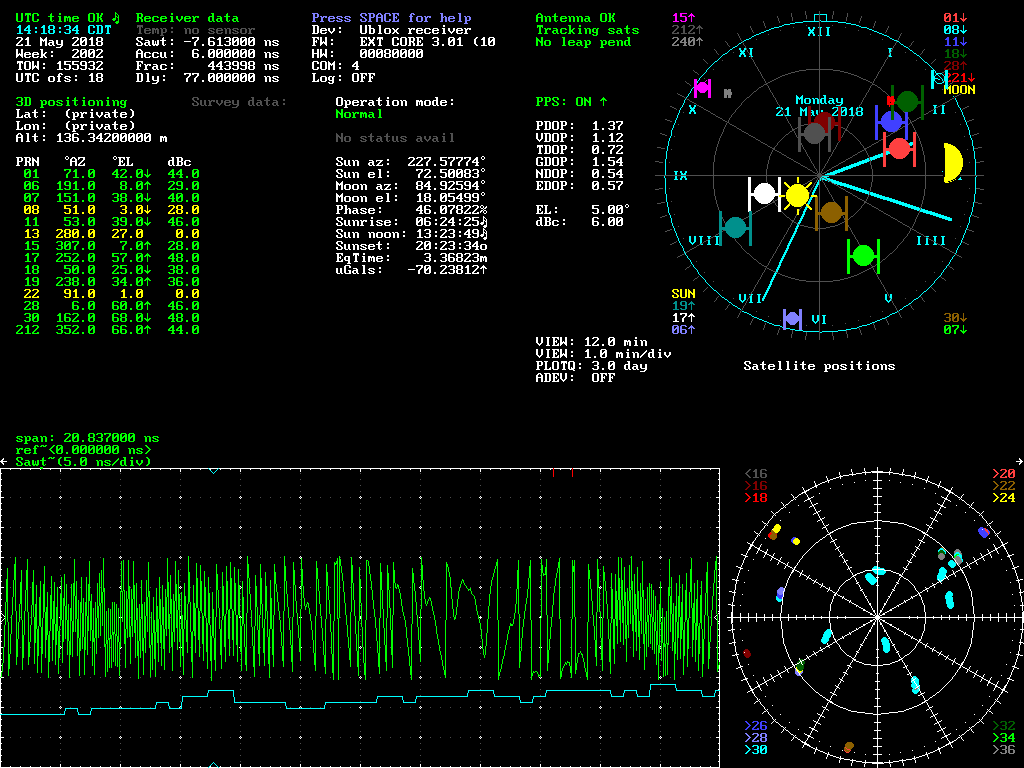

It looks like you have slipped a decimal point somewhere (also that "ps" label is wrong).   I have an M8N running here and the report sawtooth errors are all within a +/- 10 ns span.   (and LEA-5T is +/- 5ns).


> Class: TIM(0xd) ID: TP(0x1), len: 0x10
tow:1519310.000000000 qErr:-0.000000048400 ps, week:2002
  flags:0xa refInfo:0x0
      is GPS, UTC available

Which says the next PPS is going to be -48.4 nano seconds out.  Similar
to the 52 nano seconds quantization error of a RasPi 3B.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: ublox.gif
Type: image/gif
Size: 41421 bytes
Desc: ublox.gif
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180521/f1444f5d/attachment-0001.gif>
