[volt-nuts] Cheap Oscilloscope measurement of small current?
Peter Loron
peterl at standingwave.org
Fri Nov 5 21:40:36 UTC 2010

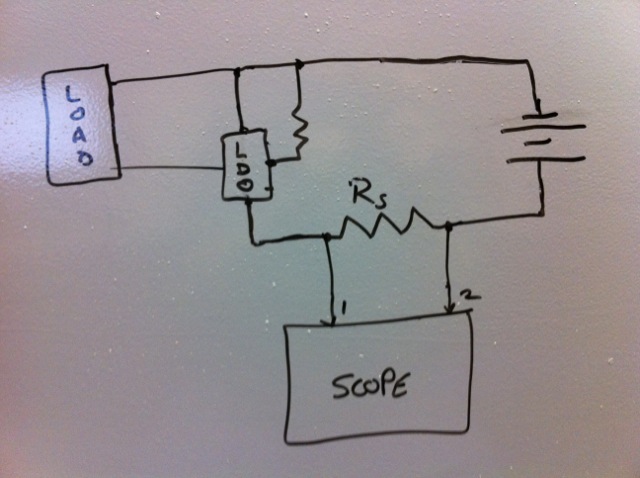

If you wouldn't mind, I'd appreciate a more detailed explanation of the setup you're using. A stab in the dark gives me this schematic:
-------------- next part --------------
A non-text attachment was scrubbed...
Name: image.jpeg
Type: image/jpeg
Size: 67628 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/volt-nuts/attachments/20101105/7ed629e6/attachment-0001.jpeg>
-------------- next part --------------
On Nov 5, 2010, at 7:08, Oz-in-DFW <lists at ozindfw.net> wrote:
> I'm doing quite a bit of this and like most things, the answer is "it
> depends. "
>
> What I'm doing right now is using a resistor in series with the _input_
> of a low leakage micropower Low DropOut (LDO) regulator because this (15
> uA) circuit will run off of a regulated supply. The LDO has a steady
> state consumption of a few microamps and that is largely a function of
> input voltage and operating temperature at the low operating currents
> I'm dealing with. My workshop temperature is constant enough. This
> works well below a uA. I just use my plain old Tek scope with two
> channels in differential mode. If I neede teh extra channel I'd brew a
> diff amp or use something like this:
>
> http://datasheets.maxim-ic.com/en/ds/MAX9938.pdf
>
> I believe you have a much more complex problem. You will be operating
> from battery or solar supplies that likely have a defined voltage and
> internal resistance over time. This can have a profound impact on
> operating time, particularly if subtle considerations are as significant
> as you imply they are. You'll either need to take a lot of measurements
> and model the supply carefully, or you'll need a good simulator of the
> supply.
>
> On 11/4/2010 6:07 PM, Peter Loron wrote:
>> Hello, all. I'm working (very slowly, but working) on some designs that
>> will be battery (and possibly solar) powered sensors with a wireless
>> data backhaul (likely 433 or 915MHz).
>>
>> As part of my never ending quest for more tools, I'm starting to educate
>> myself on what I may need to get measurements on current usage over time
>> for these devices. I want to be able to quantify power usage while it is
>> asleep, sensing, sending data, etc..."does changing this code shorten
>> the radio on time?"
>>
>> I'm sure Agilent would be happy to sell me a fancy oscilloscope current
>> probe for more than my condo cost, but I'm looking for something more
>> cost effective.
>>
>> Suggestions from the hive mind?
>>
>> Thanks.
>>
>> -Pete
> --
> mailto:oz at ozindfw.net
> Oz
> POB 93167
> Southlake, TX 76092 (Near DFW Airport)
>
>
>
>
> _______________________________________________
> volt-nuts mailing list -- volt-nuts at febo.com
> To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/volt-nuts
> and follow the instructions there.
>
