[time-nuts] Re: Fishing for 10MHz OCXO pinout/voltage info

Alberto di Bene dibene at usa.net
Sat Apr 23 10:52:38 EDT 2005

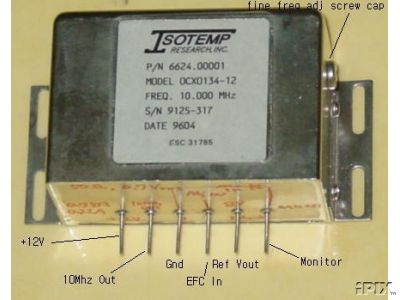

   I don't know if this message with a picture embedded will
   make it through the reflector, but anyway this is the pinout
   of the Isotemp I used for my own GPSDO :
   73  Alberto  I2PHD
-------------- next part --------------
A non-text attachment was scrubbed...
Name: isotemp.JPG
Type: image/jpeg
Size: 20197 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20050423/5e6c9a36/attachment-0004.jpeg
