[time-nuts] HP10544a Technical Info needed

Gerald Molenkamp geraldm at iprimus.com.au
Fri Feb 2 22:36:44 EST 2007

Hi Howard,

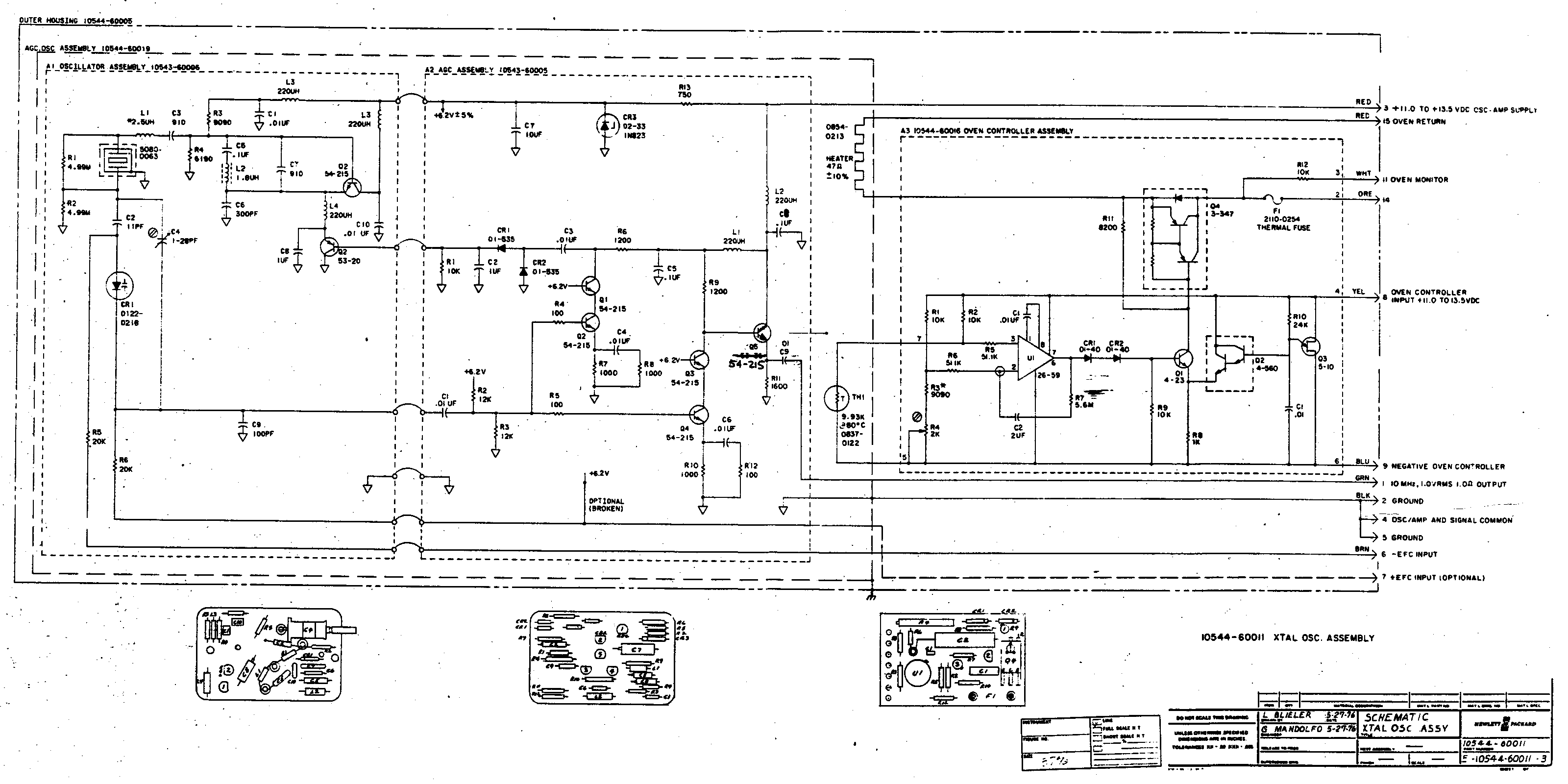

Please find attached a schematic of the 10544, hope it helps in anyway.



----- Original Message -----
From: "Howard W. Ashcraft" <hashcraft at hansonbridgett.com>
To: <time-nuts at febo.com>
Sent: Saturday, February 03, 2007 10:20 AM
Subject: [time-nuts] HP10544a Technical Info needed

>I am constructing a GPS disciplined OCXO using an HP10544a.  If someone
> has a copy of the HP manual/technical data for this oscillator, I would
> appreciate getting a scan.  I have already received, from a request on
> the HP equipment listserv, a copy of an HP10544 schematic.
> Also, while performing tests on the unit, I detected fairly strong noise
> signals leaking onto my test board.  It appears to be coming from pins
> 5/6 of the HP10544a, which are the EFC control pin and its related
> ground.  A spectrum analyzer shows the noise at about -30dbm and peaking
> around 1.8 mhz.  Has anyone seen anything similar with this OCXO?
> Everything else looks normal.
> Regards,
> *****************************
> This communication, including any attachments, is confidential and may be
> protected by privilege.  If you are not the intended recipient, any use,
> dissemination, distribution, or copying of this communication is strictly
> prohibited.  If you have received this communication in error, please
> immediately notify the sender by telephone or email, and permanently
> delete all copies, electronic or other, you may have.
> To ensure compliance with requirements imposed by the IRS, we inform you
> that any tax advice contained in this communication (including any
> attachments) was not intended or written to be used, and cannot be used,
> for the purpose of (i) avoiding penalties under the Internal Revenue Code
> or (ii) promoting, marketing or recommending to another party any
> transaction or matter addressed herein.
> The foregoing applies even if this notice is embedded in a message that is
> forwarded or attached.
> *****************************
> _______________________________________________
> time-nuts mailing list
> time-nuts at febo.com
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
-------------- next part --------------
A non-text attachment was scrubbed...
Name: schematic_10544-3.gif
Type: image/gif
Size: 92096 bytes
Desc: not available
Url : http://www.febo.com/pipermail/time-nuts/attachments/20070203/513e4047/attachment-0001.gif
