[time-nuts] A couple of Tbolt questions

Arnold Tibus Arnold.Tibus at gmx.de
Fri Jul 24 11:19:51 UTC 2009


Hi Nigel and the team,

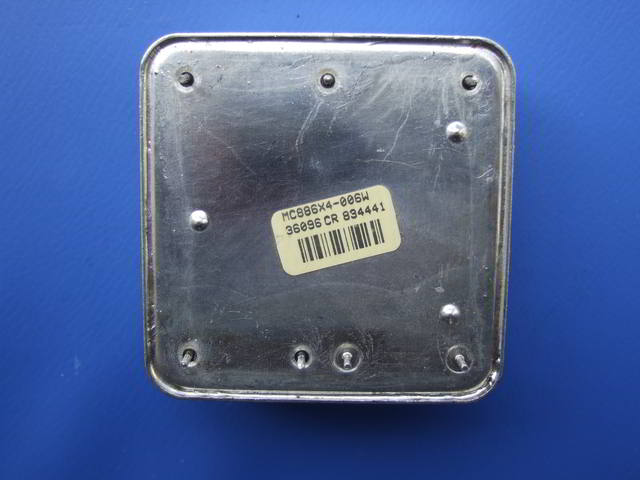

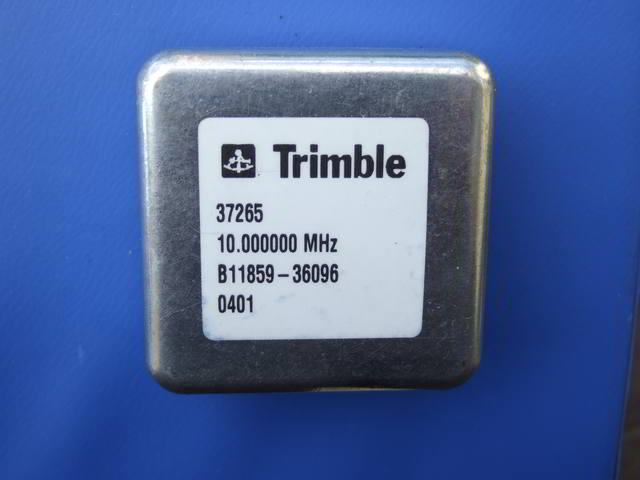

I did it and removed the OCXO from a second Thunderbolt -
my comments:

don't believe!
inform yourself, observe, measure and learn.


Compare yourself the new pictures with the previous and judge yourself,
be careful, we ought to measure it!
should we look to the back of more of them?
(I am curious to to see other reports...)

Attention:
Be very careful! When trying to remove the oscillator the hardware can
be easily and unrecoverable damaged, the operator must be experienced and
know the right technique!

regards
Arnold

On Thu, 23 Jul 2009 22:10:29 +0200, Arnold Tibus wrote:

>Hi Nigel,

>>May be,  but does not sound to be very logic to select OCXOs for low noise
>>and then  stick the 'low noise' label to the bad parts...

>>------------
>>Hi Arnold
>>
>>Many thanks for the photos, which confirmed what I understood from your
>>previous comments, that the label doesn't say "low noise", it says "phase
>>noise".
>>
>>Whilst my comment was meant to be somewhat tongue in cheek, and I agree
>>it's very unlikely they'd use noisier parts in the T'bolt and then  advertise
>>the fact, that label as it stands still reminds me more of a  fault label
>>than one indicating an attribute.
>>
>>If you were given a box of these oscillators, some with and some  without
>>that label, could you be sure, without further information or  testing, which
>>ones might have lower phase noise?
>>
>I understood you very well (I sat about 6 years with my good friend
>Michael from Portsmouth in our office - practising  best british humor... ;-)  )

>So the next step I will do, open my next TB, but I think it is time now to
>verify these boxes by real comparative measurements.
>Unfortunately I do have no characterized OCXO for reference.
>But there are many Thunderbolts around already, and there are many
>hi Q references around as well...

>regards
>Arnold



>_______________________________________________
>time-nuts mailing list -- time-nuts at febo.com
>To unsubscribe, go to https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
>and follow the instructions there.


-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/jpeg
Size: 23215 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20090724/29c4ec93/attachment.jpeg>
-------------- next part --------------
A non-text attachment was scrubbed...
Name: not available
Type: image/jpeg
Size: 29260 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20090724/29c4ec93/attachment-0001.jpeg>
