[time-nuts] WWVB remodulator for the spectracom 8170 the schematic is to large

Rex rexa at sonic.net
Mon Jun 17 00:59:47 EDT 2013

On 6/16/2013 2:43 PM, paul swed wrote:
> OK no schematic. It was 2MB. But it was a scan of my notes. Happy to post
> to a sight or two. Can include some pictures also.

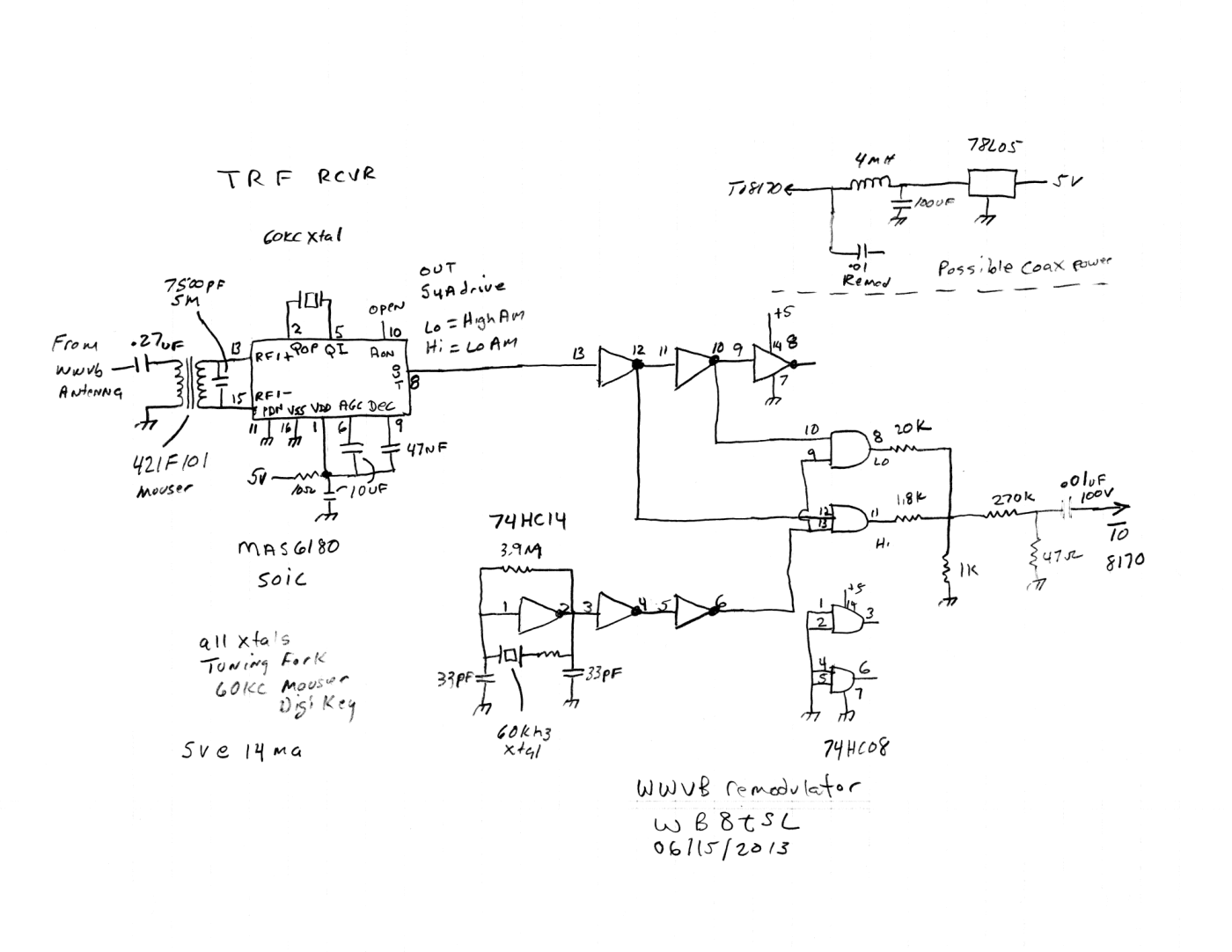

I shrunk the schematic down to <100k and I think still quite readable.
Attempting to attach it to this posting.

-------------- next part --------------
A non-text attachment was scrubbed...
Name: wwvb remodd spectracom 8170_.gif
Type: image/gif
Size: 96931 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20130616/ef839c9d/attachment-0001.gif>
