Hi List,

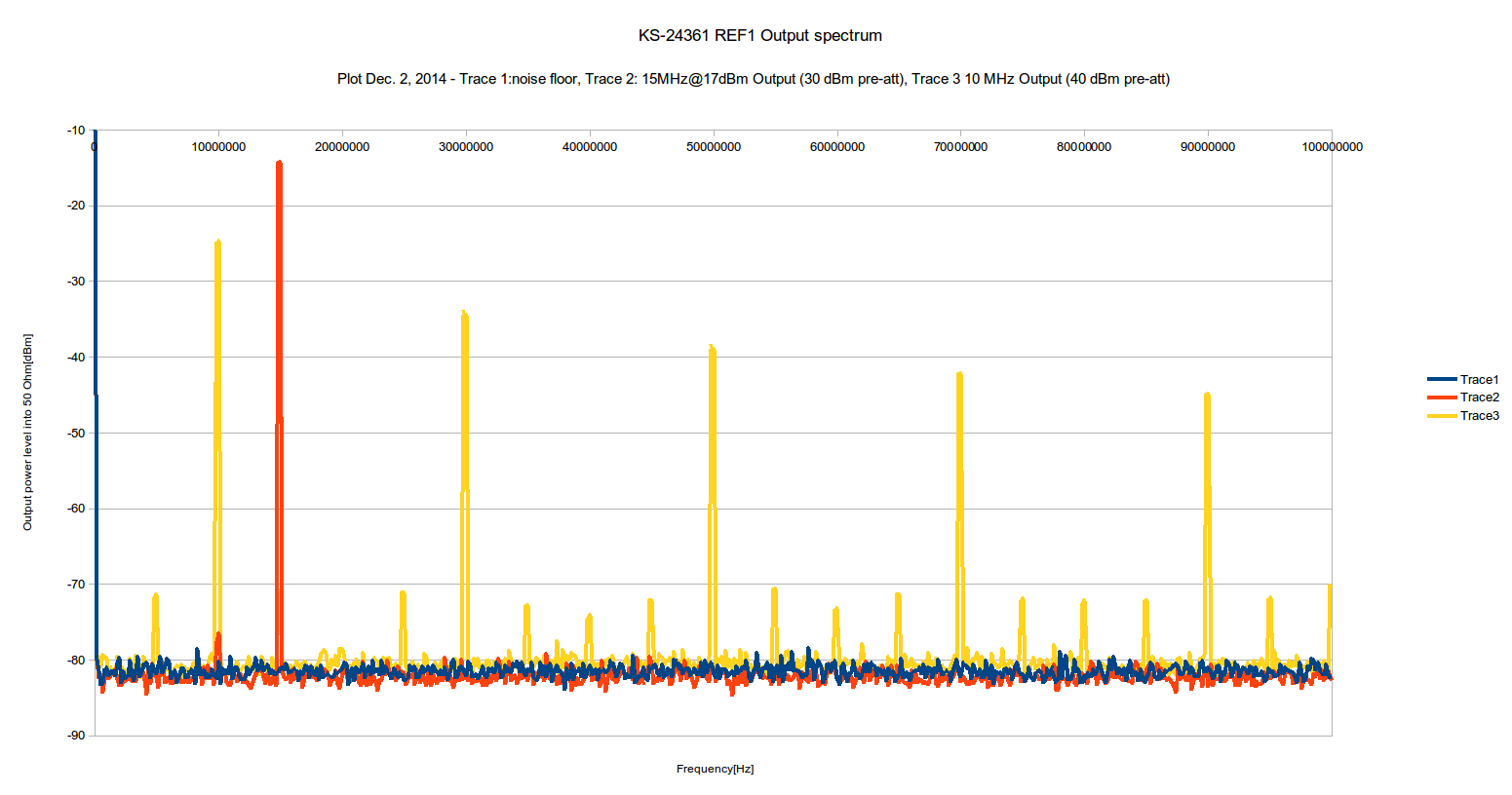

here is my example spectrum taken with a Rigol 815, due to inpatience
only up to 100 MHz.
(I don't know if this was posted yet, but still then it would be a 2nd,
3rd example.)

This shows what is meant by "clean 15, dirty 10 MHz." I always use
insane pre-attenuation as every beginner should do. But even a dirty 10
MHz can be good, e.g. for driving comb generators =)


-------------- next part --------------
A non-text attachment was scrubbed...
Name: REF Spectrum.png
Type: image/png
Size: 46127 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141202/e568a51b/attachment-0001.png>
