[time-nuts] Beaglebone NTP server

Frister frister at gmx.net
Tue Dec 9 08:57:08 EST 2014


Thanks for pointing this out David,
Compiling an new kernel was holding me back. I followed your instructions and
everything works beautiful. The PI that is running the PPS timekeeping with NTP
is serving as a VLF receiver as well. Taxing the poor CPU, but with
kernel PPS support
the NTP daemon has become way happier! (see attachment)

73, Frits W1FVB


On 12/8/14, David J Taylor <david-taylor at blueyonder.co.uk> wrote:
> From: Chris Albertson
>
> Really?   The PPS to GPIO interface is handles in user space?  It is not
> interrupt driven?
> In the implementations I've seen the critical real time work is done inside
> the PPS interrupt handler and then of course ntpd runs in userland and can
> take as much time as it needs
> =================================================
>
> Folkert's solution was very helpful, but there is now kernel-mode PPS
> support for a GPIO pin the current Raspberry Pi Linux - see:
>
>   http://www.satsignal.eu/ntp/Raspberry-Pi-NTP.html#easy
>
> I'm running that on a couple of systems here.
>
> Cheers,
> David
> --
> SatSignal Software - Quality software written to your requirements
> Web: http://www.satsignal.eu
> Email: david-taylor at blueyonder.co.uk
>
> _______________________________________________
> time-nuts mailing list -- time-nuts at febo.com
> To unsubscribe, go to
> https://www.febo.com/cgi-bin/mailman/listinfo/time-nuts
> and follow the instructions there.
>


--
vbradio.wordpress.com
-------------- next part --------------
A non-text attachment was scrubbed...

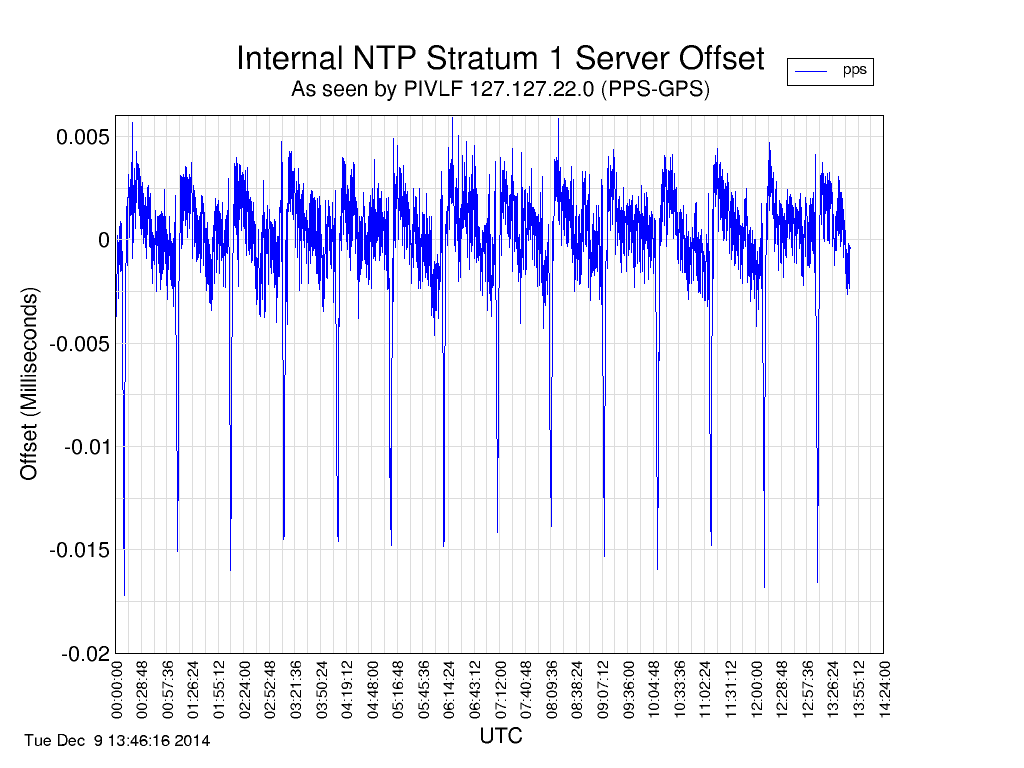

Name: pps.png
Type: image/png
Size: 30766 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141209/11be2060/attachment-0002.png>
-------------- next part --------------
A non-text attachment was scrubbed...

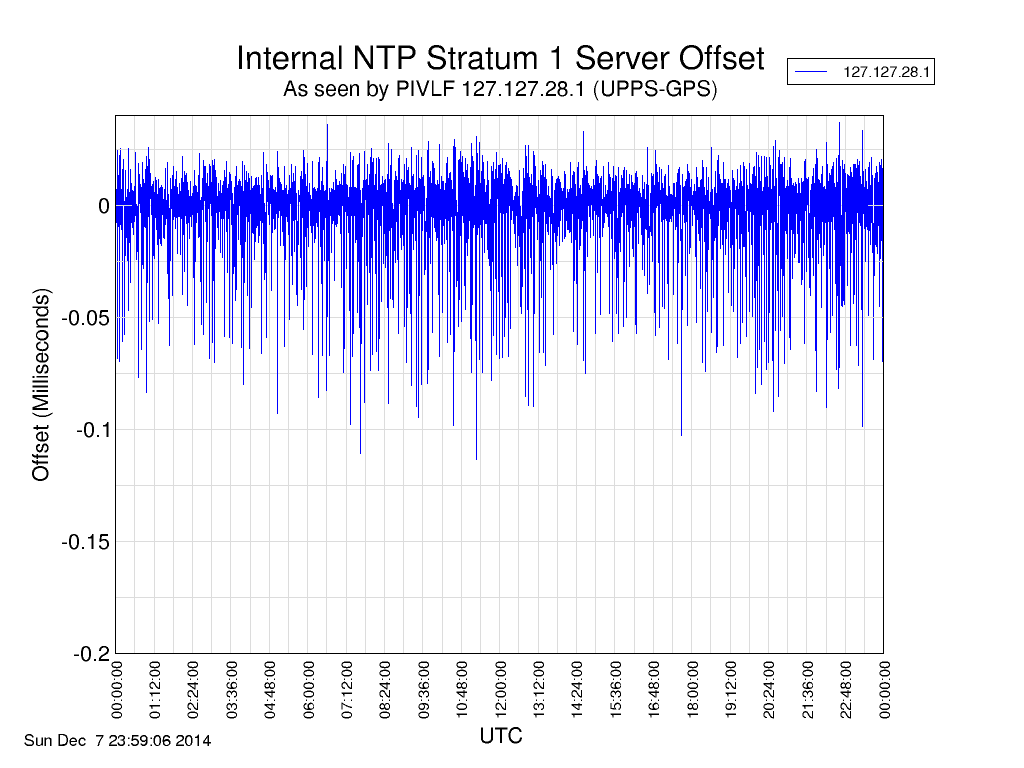

Name: pps-no-kernel.png
Type: image/png
Size: 31704 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20141209/11be2060/attachment-0003.png>
