[time-nuts] 4046 experiment for gpsdo

Jim Harman j99harman at gmail.com
Fri Sep 25 16:32:18 EDT 2015

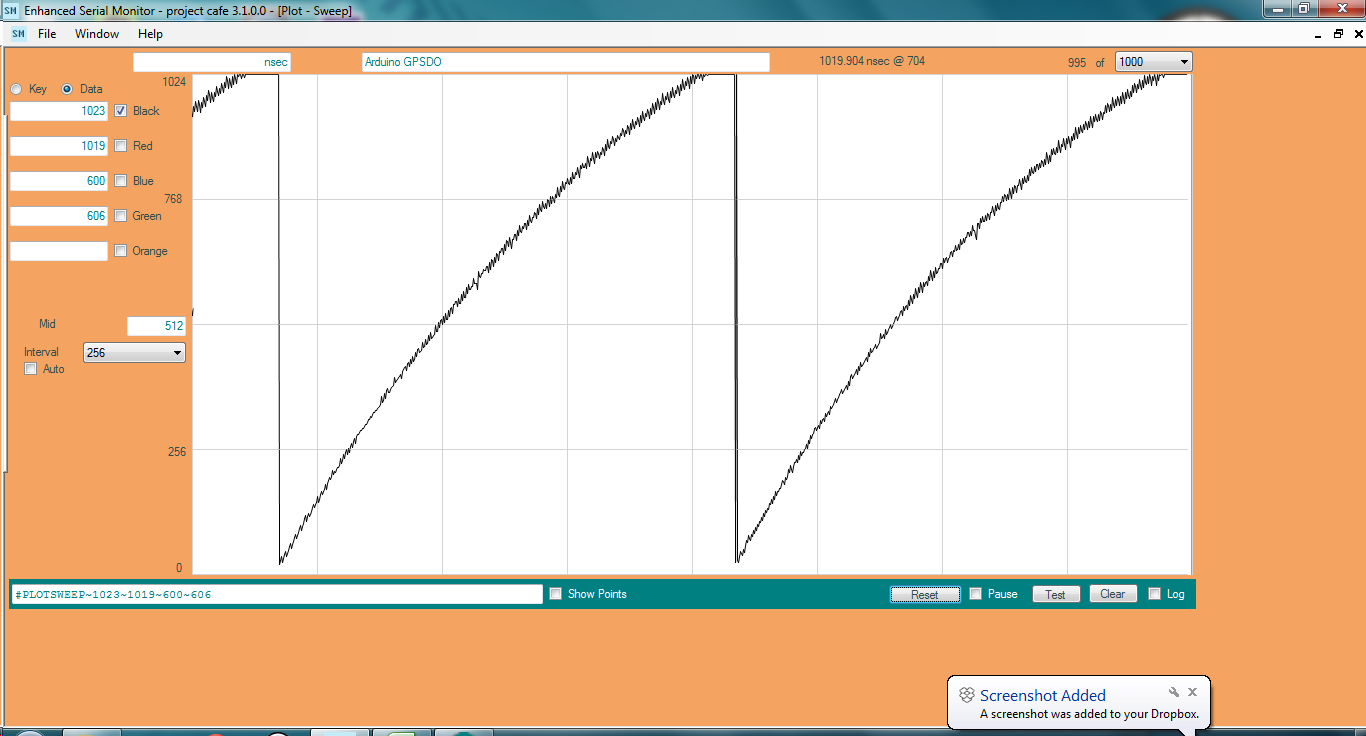

To further demonstrate the Diode - R- C- approach, here  (hopefully) is a
screenshot of the raw DAC output vs time on my Arduino Micro (32u4) based
system. For this test the oscillator is free running with an error of about
1 usec per 460 sec or 2.17x10^-9. The horizontal scale is 125 sec/div (1000
sec total) and the vertical is 1024  DAC counts (0-2.56 V) which
corresponds to 1 usec of offset between the oscillator and the reference.

You can see that there is some curvature because the capacitor is being
charged through a resistor and not a true current source, but as I
mentioned earlier this does not affect the system's ability to lock the
oscillator to the pps reference. When locked with a time constant of 1000
sec, the phase detector output is almost always less than +/- 100 counts
from the setpoint of 500.

The noise is due mostly to jitter in my PPS reference, which is generated
by an Adafruit GPS module. Presumably it would be less if I had a real
timing receiver.


​.
If the inserted image does not come through, I will re-send as an
attachment.

>
> --

--Jim Harman
