Mark wrote:

>  I need a simple and cheap circuit to level shift the TTL signal to +/- 0.50V
>  It probably needs clean, stable, fast edges and able to drive a 50 ohm load

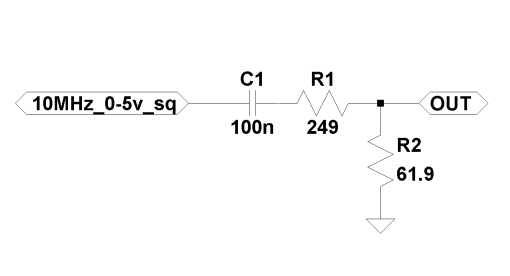

See attached.  The resistor values shown assume that the source is a
0-5v rectangular signal able to source +/- 10mA with negligible voltage
drop (a single 74AC or 74HC gate will do that).  The edges will be as
fast as the source.  The symmetry and stability will be the same, as well.

Best regards,


-------------- next part --------------
A non-text attachment was scrubbed...
Name: HP59992_simulator.png
Type: image/png
Size: 10635 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170708/e361b9b1/attachment.png>
