[time-nuts] Motorola M12+ breakout board

Mark Sims holrum at hotmail.com
Fri Feb 16 20:26:24 EST 2018

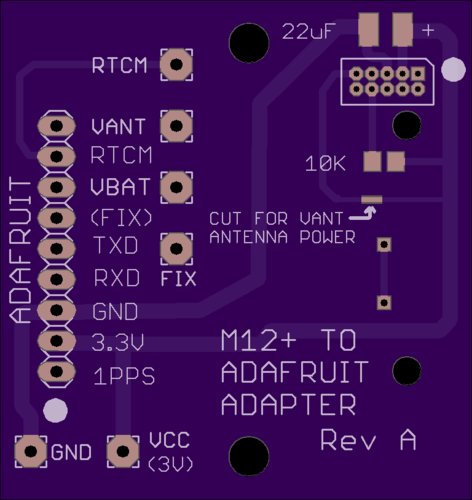

Besides the Furuno GT-8036 breakout board,  I just did a layout for a board that converts the pinouts of Motorola M12+ compatible receivers to a 0.1" 9-pin header that (mostly) matches the Adafruit Ultimate GPS.   The Adafruit ENABLE pin is repurposed as a DGPS RTCM corrections input and the Adafurit +3.3VREG output pin is used to provide  external antenna (5V) power... the board defaults to use the 3.3V VCC power input for the antenna power.  Contact me off list if interested.
-------------- next part --------------
A non-text attachment was scrubbed...
Name: m12.png
Type: image/png
Size: 80967 bytes
Desc: m12.png
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180217/7b6cf34f/attachment-0001.png>
