[time-nuts] 4046 replacement

Charles Steinmetz csteinmetz at yandex.com
Sun May 6 04:03:00 EDT 2018

See below for further information on working with the 4046/7046/9046 PLL
families, including must-have design tools for anyone designing with
these devices.

I wrote:

>> The "flaw" in the 4046 is a dead zone around zero error in Phase
>> Comparator 2 (the PC one generally uses).

Magnus responded:

> It is very bad indeed. Someone chose to use the 4046 to lock up a 155,52
> MHz VCXO to a 8 kHz reference, using a 4046 as a core. The charge-pump
> was then "accelerated" with a supposedly better charge-pump with a ton
> of passives. Turns out that the dead-band was still there to haunt the
> designers. The 155,52 MHz was further multiplied to become the 2,48832
> Gb/s clock, and as they measured this they had problems with the
> jitter/wander of it

Of course the dead zone was still there -- it is built into the
4046/7046 phase comparator, and nothing you do after-the-fact can
eliminate it (but see below re: linearizing the 4046/7046 phase
comparator). Most of what is wrong with the circuit you describe above
is simply bad system design, not any fault of the 4046.

While it is true that some people call the PC2 output of the 4064 a
"charge pump," as a voltage source it is, at best, a very poor one. The

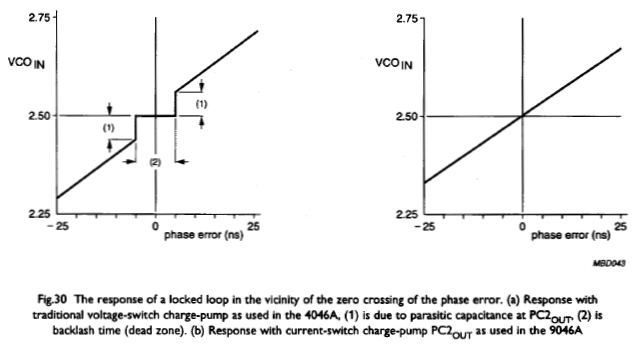

9046 has a real, current-mode charge pump with tri-state outputs. The
attached charts show the difference in linearity [1].

There are tricks one can pull to linearize the PC2 output of a 4046 or
7046.  In particular, (i) injecting current into the PC2 output node
biases the detector away from the dead zone at the price of a static
phase error, and (ii) instead of using a passive RC filter, run the PC2
output through the resistor to the virtual-ground input of an active
filter, which effectively turns the PC2 voltage output into a bipolar
current output.  Still, however, the 4046/7046 PC2 cannot overlap
positive and negative steering pulses as the 9046 PC2 can, and the 9046
thresholds are established by a real voltage reference, so the 9046 will
always be better than the best that can be done with a 4046 or 7046.

I do not use 4046-type devices very often, but ever since the 9046
became available I have used it exclusively in preference to the 4046
and 7046.

Best regards,


[1]  The attached charts are taken from the Philips CMOS PLL Designer's
Guide (1995), which is an absolute must-have for anyone designing with
the 4046/7046/9046 PLL families.  List member Daniel Mendes pried the
Guide and supporting files out of Philips a couple of years ago, and
list member Oz from DFW hosts them on his site.  I cropped the pages of
the Design Guide to eliminate the large white borders and re-posted it
all as a zip file to Didier's site:

-------------- next part --------------
A non-text attachment was scrubbed...
Name: 4046_vs_9046_phase_detector_responses_Philips.png
Type: image/png
Size: 66775 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20180506/b4a0dc2e/attachment-0001.png>
