[time-nuts] ADEV query Timelab and TICC
Tom Van Baak
tvb at LeapSecond.com
Sun Mar 19 23:03:29 EDT 2017
> I have sent a couple of files to Tom. They were taken simultaneously from
> an LTE Lite - one from the PPS and one from a PicDiv dividing the 10MHz to
> 1Hz. The glitches were on the PPS trace, but not on the PicDiv trace, so
> I'm fairly confident the TICC was working correctly.
>
> Orin.
Hi Orin,
Thanks for the raw data. It's very nice (2 hours 16 minutes = 8219 points). Everything looks fine with the exception of 8 glitches. These are sometimes obvious jumps in phase, which cause massive spikes in frequency. Two plots attached.
Almost every data point is within a few ns of each other. This is good. The standard deviation is a fraction of 1 ns. But once in a while there is a relatively massive phase jump. This is bad. Interestingly these 8 phase jumps all appear to be about 25 ns or a multiple of 25 ns in magnitude. The full list is (ns units):
24.575
24.724
24.831
25.047
25.087
25.549
25.589
49.623
25 * N ns is not random. So I think this is not a Windows problem, not a USB problem, not a TimeLab problem, not a TICC problem either.
It makes me wonder if this is a LTE-Lite problem. If Said or Keith from Jackson Labs is around -- is there anything on the LTE-Lite board that's close to 20 or 40 or 80 MHz? At this point I kind of trust Orin's data and I kind of trust the TICC. So when I see monster 25 ns phase jumps it makes me think there's a problem with the GSPDO board itself.
(Please realize that only on time-nuts may we can use the words "monster" and "25 ns" in the same sentence; the rest of the world has larger problems)
/tvb
-------------- next part --------------
A non-text attachment was scrubbed...

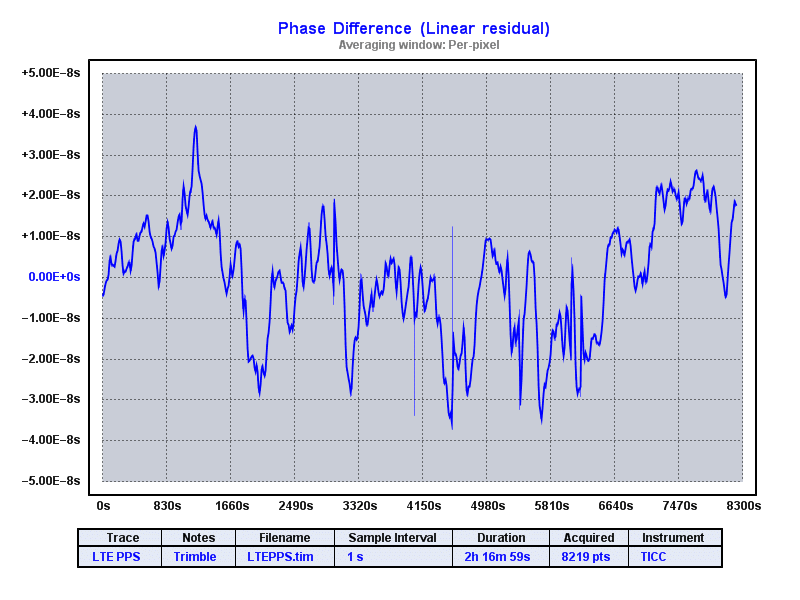

Name: orin-1.gif
Type: image/gif
Size: 37287 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170319/95cb050d/attachment-0002.gif>
-------------- next part --------------
A non-text attachment was scrubbed...

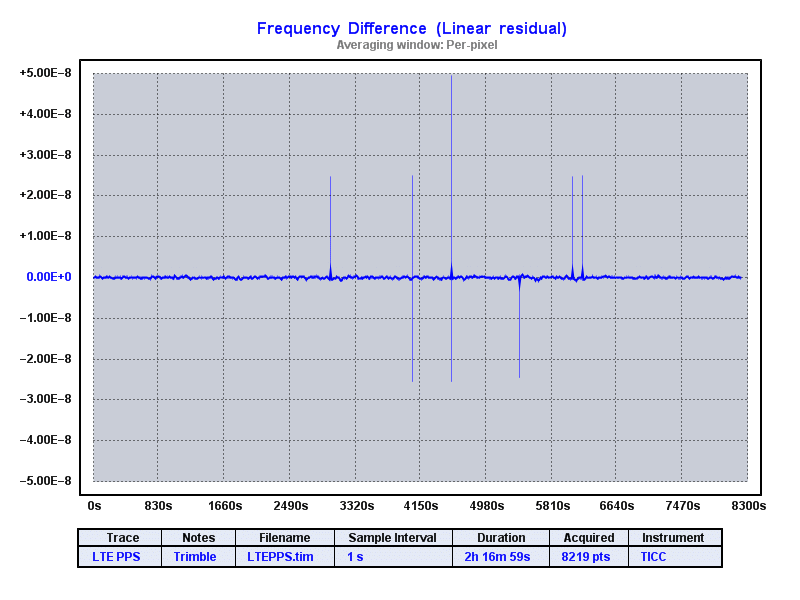

Name: orin-2.gif
Type: image/gif
Size: 23102 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/time-nuts/attachments/20170319/95cb050d/attachment-0003.gif>
