[volt-nuts] Low-cost voltage reference questions

Charles Steinmetz csteinmetz at yandex.com
Wed Nov 25 06:17:07 EST 2015

Andreas wrote:

>Hello Lars,  or course you are right: the AD587 (10V) and AD586 (5V)
>are the best (unheated) chips with hermetically package today.

I'm curious why you think the AD587/586 are better than other
hermetically packaged references with better drift and noise
specifications -- in particular,

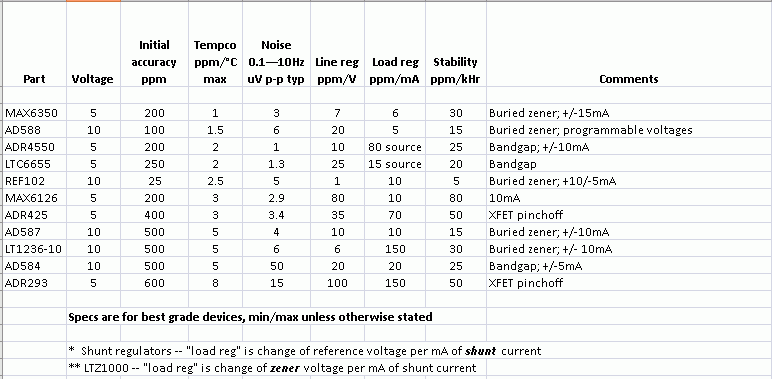

(see attached table).  (Note that the hermetic version of the MAX6350
has a 2.5ppm/C drift spec, not 1ppm/C as listed in the table for a
different package.)

The 587 has a better long-term drift spec than the 6360 and the 6655
(but note that the 587 is 3x worse than the REF102 in this
regard).  To my mind, the better tempco and noise of the 6350 and
6655 outweigh the better long-term drift of the 587 in an overall ranking.

Best regards,


-------------- next part --------------
A non-text attachment was scrubbed...
Name: Voltage_reference_specs.gif
Type: image/gif
Size: 13139 bytes
Desc: not available
URL: <http://www.febo.com/pipermail/volt-nuts/attachments/20151125/f05a81b9/attachment-0001.gif>
